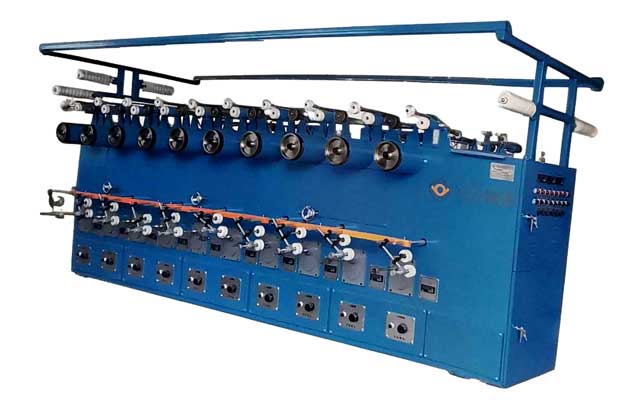

40B 40-head Stainless Steel Wire Take-up Machine
40B 40-head stainless steel wire take-up machine is a type of take-up machine used for stainless steel wire after annealing. It integrates a torque speed control system and supports straight or diagonal winding to ensure that the wire shaft is tight and the inner and outer softness are consistent, avoiding tangled wires. The stainless steel wire winding machine is suitable for annealing hard stainless steel wire. The inverted design makes the wire spool neat and easy to unload.
40B 40-head Stainless Steel Wire Take-up Machine Datasheet
| Model |
40B |
| No. of Wires |
40 |
| Wire Dia. |
0.1-0.7 mm |
| Take-up Speed (Max.) |
200 m/min |
| Mode of Traction |
Reduction gearbox + Motor+ Inverter |
| Tension Control |
Torque motor + Voltage regulator |
| Traversing Method |
Gear motor + Crack control |
| Take-up Type |
Torque motor |
40B 40-head Stainless Steel Wire Take-up Machine Application
40B 40-head stainless steel wire take-up machine is a type of take-up machine used for stainless steel wire after annealing. It integrates a torque speed control system and supports straight or diagonal winding to ensure that the wire shaft is tight and the inner and outer softness are consistent, avoiding tangled wires. The stainless steel wire winding machine is suitable for annealing hard stainless steel wire.
