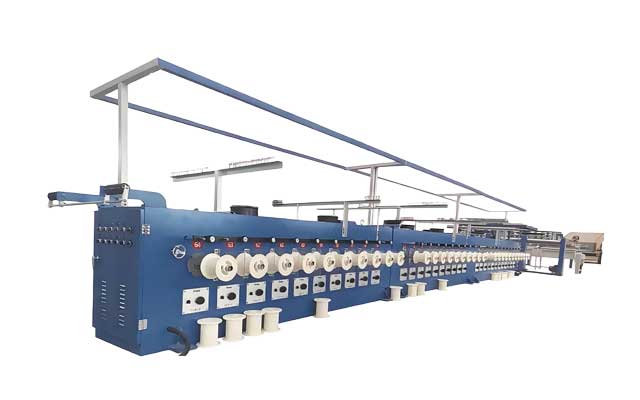

Annealing Tinning Machine
The annealing and tin-plating machine is a critical equipment in copper wire processing, primarily used for annealing and softening copper wires and applying surface tin-plating treatment to enhance conductivity, corrosion resistance, and solderability. It is typically integrated with wire drawing machines to achieve a continuous process chain from wire drawing to tin plating.
Key Features
1. Furnace liner design within the annealing furnace ensures uniform temperature distribution and energy-efficient performance.
2. Dual tin-plating bath design enables simultaneous production of diversified products.
3. Double-layer take-up machine design reduces floor space requirements for equipment installation.
Annealing Tinning Machine Datasheet
| Model |
40A |
40B |
| No. of Wires |
40 |
40 |
| Wire Dia. |
0.1-0.32 mm |
0.1-0.6 mm |
| Line Speed (Max.) |
300 m/min |
300 m/min |
| Pay-off Method |
Pay-off with hairbrush |
Pay-off with hairbrush |
| Annealing Method |
Tubular annealing |
Tubular annealing |
| Tinning Method |
Hot dip with tinning die |
Hot dip with tinning die |
| Take-up Method |
Torgue motor 1.2-1.5N*M |
Torgue motor 1.2-1.5N*M |
| Annealing Length |
4.5 m |
6 m |
| Electrothermal Power |
64.5 KW |
78 KW |
| Motor Power |
12 KW |
12 KW |
| Traversing Control |
Gear motor |
Gear motor |
Annealing Tinning Machine Application
The annealing and tin-plating machine is a critical equipment in copper wire processing, primarily used for annealing and softening copper wires and applying surface tin-plating treatment to enhance conductivity, corrosion resistance, and solderability. It is typically integrated with wire drawing machines to achieve a continuous process chain from wire drawing to tin plating.
