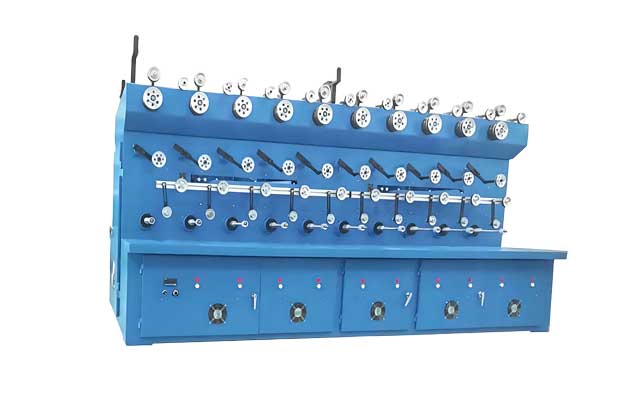

Stainless Steel Wire Take-up Machine
Stainless steel wire take-up machine is a type of take-up machine used for stainless steel wire after annealing. It integrates a torque speed control system and supports straight or diagonal winding to ensure that the wire shaft is tight and the inner and outer softness are consistent, avoiding tangled wires. The stainless steel wire winding machine is suitable for annealing hard stainless steel wire. The inverted design makes the wire spool neat and easy to unload.
Stainless Steel Wire Take-up Machine Datasheet
| Model |
40A |
40B |
| No. of Wires |
40 |
40 |
| Wire Dia. |
0.1-0.35 mm / 0.35-0.70 mm |
0.1-0.7 mm |
| Take-up Speed (Max.) |
70-180 or 30-80 m/min |
200 m/min |
| Mode of Traction |
Reduction gearbox + Motor+ Inverter |
Reduction gearbox + Motor+ Inverter |
| Tension Control |
Independent control on each head with balancing weight |
Torque motor + Voltage regulator |
| Traversing Method |
Gear motor + Timing belt control |
Gear motor + Crack control |
| Take-up Type |
AC motor + Inverter |
Torque motor |
Stainless Steel Wire Take-up Machine Application
Stainless steel wire take-up machine is a type of take-up machine used for stainless steel wire after annealing. It integrates a torque speed control system and supports straight or diagonal winding to ensure that the wire shaft is tight and the inner and outer softness are consistent, avoiding tangled wires. The stainless steel wire winding machine is suitable for annealing hard stainless steel wire.
