Gantry-type Cable Coiling Machine

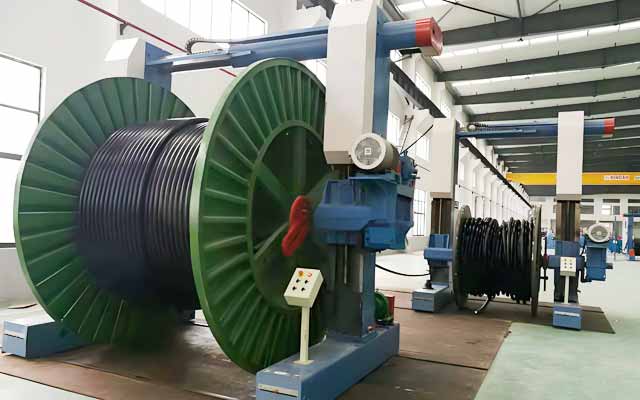

The gantry-type cable coiling machine is a heavy-duty cable winding equipment that adopts a gantry frame structure and is suitable for high-precision winding of large-diameter and heavy-duty cables (such as power cables, submarine cables, and ultra-high voltage cables). Its core features are high load-bearing capacity and stable cable control, which can ensure uniform tension and neat cable arrangement during the winding process, avoiding problems such as wire stacking and compression.
Gantry-type Cable Coiling Machine Datasheet
| Name |
Gantry-type Cable Coiling Machine |
| Dia. of Wires |
0-60 mm |
| Line Speed |
0-80 m/min |
| Wire Spool |
φ630-1600 mm |
| Width of Spool |
475-1180 mm |
| Spool Weight |
5 tons |
| Lift Motor |
1.1 KW |
| Traverse Motor |
1.1 KW |
| Clamping Motor |
0.75 KW |
| Application |
Used for winding and coiling of various cables during production processes including cross-linking, cabling, stranding, armoring, extrusion, and rewinding. |
| Tension Control |
Potentiometer adjusts tension |
| Braking System |
/ |
| Spool Lifting |
Gearbox controls lifting and lowering |
Gantry-type Cable Coiling Machine Application
The gantry-type cable coiling machine is a heavy-duty cable winding equipment that adopts a gantry frame structure and is suitable for high-precision winding of large-diameter and heavy-duty cables (such as power cables, submarine cables, and ultra-high voltage cables). Its core features are high load-bearing capacity and stable cable control, which can ensure uniform tension and neat cable arrangement during the winding process, avoiding problems such as wire stacking and compression.
