CC450S Capstan-type Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing

CC450S Capstan-type Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing

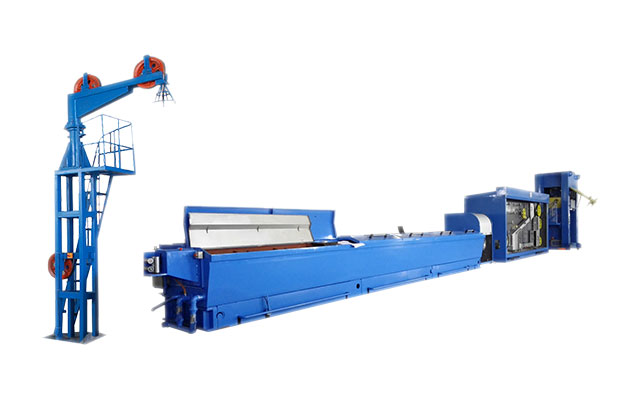

The CC450S capstan-type coarse aluminum wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse aluminum wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing coarse aluminum wire of φ1.6-3.5 mm.

CC450S Capstan-type Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	CC450S9	CC450S13
No. of Wires	1	1
Inlet Wire Dia.	9.5 mm	9.5 mm
Outlet Wire Dia.	2.5-3.5 mm	1.6-3.0 mm
Line Speed (Max.)	800 m/min	800 m/min
No. of Dies (Max.)	9	13
Drawing Wheel	φ450 mm	φ450 mm
Fixed Speed Wheel	φ450 mm	φ450 mm
Main Motor	160 KW	200 KW
Take-up Motor	15 KW	15 KW
Traverse Motor	/	/
Control Mode	Speed controller + Double frequency converter	Speed controller + Double frequency converter
Traverse Method	Gear motor	Gear motor
Lubrication	Spray type	Spray type
Voltage	380V	380V
Brake	Pneumatic brake	Pneumatic brake
Take-up Spool	φ800 mm	φ800 mm

CC450S Capstan-type Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing Application

The CC450S capstan-type coarse aluminum wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse aluminum wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing coarse aluminum  wire of φ1.6-3.5 mm.
