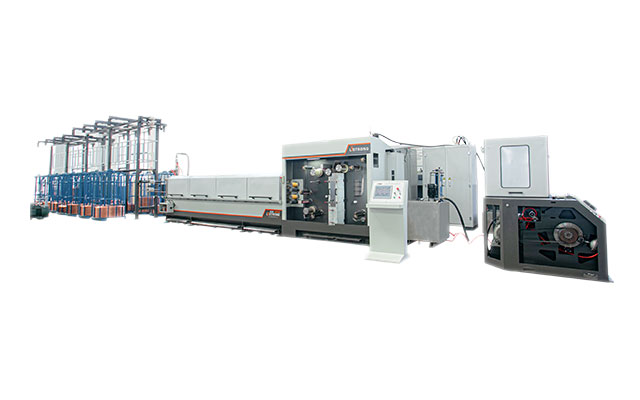

FM8 8-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing

FM8 8-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing

FM8 8-line fine aluminum wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse aluminum wire (usually with a diameter of Φ1.5-1.8 mm) into fine aluminum wires (Φ0.15-0.40 mm) through multiple passes of stretching.

Characteristic

1. High precision helical gear transmission, unique oil lubrication mechanism, dual motor drive, fast mold changing system;
2. Adopting a strong fuel injection design inside the mold seat for more thorough lubrication, space saving, and convenient operation;
3. The annealed contact copper ring and nickel cylinder are made of special alloy materials to ensure longer service life;
4. The online annealing control adopts a zero meter preset voltage design to ensure stable annealing quality of the wire during start-up and shutdown states.

FM8 8-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	FM8
No. of Wires	8
Inlet Wire Dia.	8*φ1.5-1.8 mm
Outlet Wire Dia.	8*φ0.15-0.40 mm
Line Speed (Max.)	1800 m/min
No. of Dies (Max.)	25
Slip Ratio of M/C	20%+15.5%
Main Motor	110+37 KW
Drawing Wheel	φ100 mm
Contact Wheel	φ140 mm
Annealing Method	DC
Annealing Voltage	60 V
Annealing Current	2000 A

FM8 8-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing Application

FM8 8-line fine aluminum wire drawing machine line with continuous annealing can be used in fields such as fine wires, electronic components, and special cables. Specifically, as follows:
Micro Wires & Electronic Wires
Electronic connection cables (such as headphone cables, aluminum foil shielding layer inside data cables).
Micro motor winding wires (such as drone motors, micro servo motors).
Enamel Aluminum Wire (electromagnetic wire)
Used for windings of small transformers, inductors, relays, and other electronic components.
Special Cable
High Temperature Wire (such as silicone rubber insulated aluminum wire).
High frequency cables (such as the shielding layer of coaxial cables).
3D Printing & Welding Materials
3D printing of metal wires (some aluminum based composite materials can be used for additive manufacturing).
Precision welded aluminum wire (such as bonding aluminum wire used in electronic packaging).
