Model FS22No. of Wires 1Inlet Wire Diameter 0.6-1.6 mmOutlet Wire Diameter 0.15-0.6 mmLine Speed (Max.) 2000 m/minNo. of Dies (Max.) 22Motor Power 18.5 KWTake-up Power 3.7 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

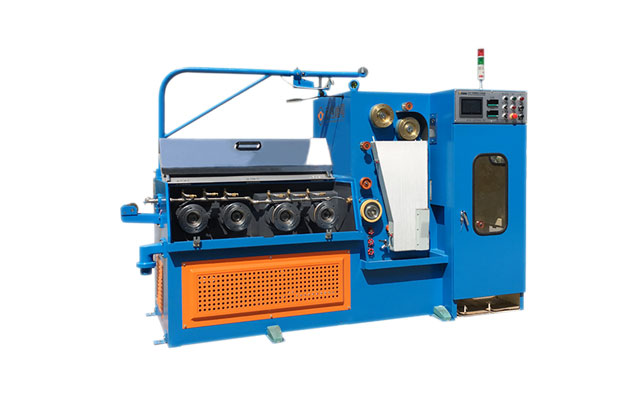

FS22 Fine Aluminum Wire Drawing Machine Line with Continuous Annealing
FS22 fine aluminum wire drawing machine line with continuous annealing is a specialized equipment line used to process medium aluminum wire (usually with a diameter of Φ0.6-1.6 mm) into fine aluminum wires (Φ0.15-0.6 mm) through multiple passes of stretching.
FS22 Fine Aluminum Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
FS22 |
| No. of Wires |
1 |
| Inlet Wire Dia. |
0.6-1.6 mm |
| Outlet Wire Dia. |
0.15-0.6 mm |
| Line Speed (Max.) |
2000 m/min |
| No. of Dies (Max.) |
22 |
| Main Motor |
18.5 KW |
| Take-up Motor |
3.7 KW |
| Annealing Motor |
36 KVA |
| Correction System |
Automatic control |
| Annealing Method |
DC three-section annealing |
| Brake |
Pneumatic brake |
| Take-up Spool |
φ300 mm |
FS22 Fine Aluminum Wire Drawing Machine Line with Continuous Annealing Application
FS22 fine aluminum wire drawing machine line with continuous annealing is a specialized equipment line used to process medium aluminum wire (usually with a diameter of Φ0.6-1.6 mm) into fine aluminum wires (Φ0.15-0.6 mm) through multiple passes of stretching.
