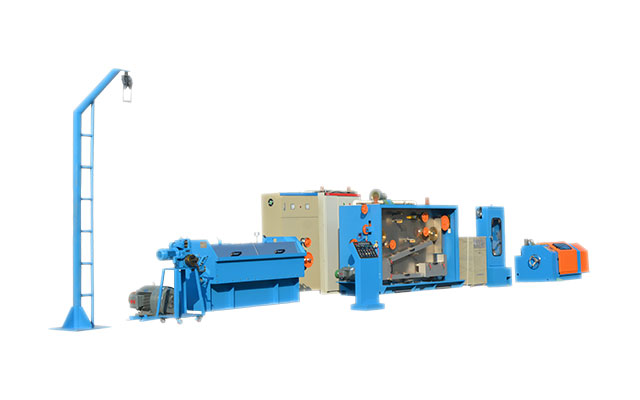

ML17S Medium Aluminum Wire Drawing Machine Line with Continuous Annealing

ML17S Medium Aluminum Wire Drawing Machine Line with Continuous Annealing

The ML17S medium aluminum wire drawing machine line with continuous annealing is composed of equipment such as single-head medium aluminum wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium aluminum wire of φ0.5-2.8 mm.

ML17S Medium Aluminum Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	ML17S350	ML17S270
No. of Wires	1	1
Inlet Wire Dia.	3.0-3.5 mm	3.0-3.5 mm
Outlet Wire Dia.	0.8-2.8 mm	0.5-2.0 mm
Line Speed (Max.)	1200 m/min	1200 m/min
No. of Dies (Max.)	17	17
Drawing Wheel	φ260 mm	φ260 mm
Fixed Speed Wheel	φ260 mm	φ260 mm
Main Motor	45 KW	45 KW
Take-up Motor	15 KW	15 KW
Annealing Motor	11 KW	11 KW
Control Mode	Frequency converter	Frequency converter
Traverse Method	Gear motor	Gear motor
Lubrication	Spray type	Spray type
Voltage	/	/
Brake	Pneumatic brake	Pneumatic brake
Take-up Spool	φ630 mm	φ630 mm

ML17S Medium Aluminum Wire Drawing Machine Line with Continuous Annealing Application

The ML17S medium aluminum wire drawing machine line with continuous annealing is composed of equipment such as single-head medium aluminum wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium aluminum wire of φ0.5-2.8 mm.
