Model FS14No. of Wires 1Inlet Wire Diameter 0.8-1.6 mmOutlet Wire Diameter 0.25-0.6 mmLine Speed (Max.) 1200 m/minNo. of Dies (Max.) 14Motor Power 15 KWTake-up Power 3.7 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

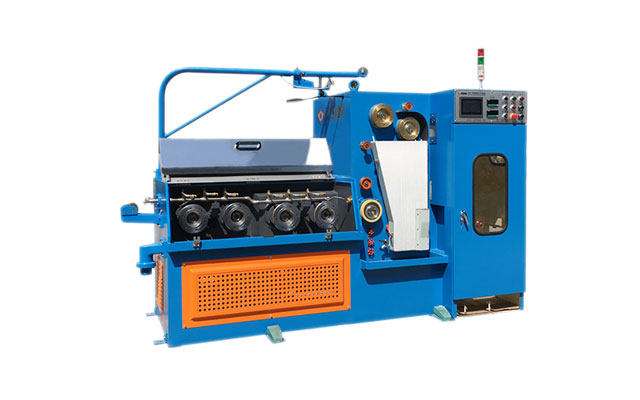

FS14 Fine Copper Wire Drawing Machine Line with Continuous Annealing
FS14 fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process medium copper wire (usually with a diameter of Φ0.8-1.6 mm) into fine copper wires (Φ0.25-0.6 mm) through multiple passes of stretching.
FS14 Fine Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
FS14 |
| No. of Wires |
1 |
| Inlet Wire Dia. |
0.8-1.6 mm |
| Outlet Wire Dia. |
0.25-0.6 mm |
| Line Speed (Max.) |
1200 m/min |
| No. of Dies (Max.) |
14 |
| Main Motor |
15 KW |
| Take-up Motor |
3.7 KW |
| Annealing Motor |
36 KVA |
| Correction System |
Automatic control |
| Annealing Method |
DC three-section annealing |
| Brake |
Pneumatic brake |
| Take-up Spool |
φ300 mm |
FS14 Fine Copper Wire Drawing Machine Line with Continuous Annealing Application
FS14 fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process medium copper wire (usually with a diameter of Φ0.8-1.6 mm) into fine copper wires (Φ0.25-0.6 mm) through multiple passes of stretching.
