Model FS/FD/FM SeriesNo. of Wires 1Inlet Wire Diameter 0.15-2.6 mmOutlet Wire Diameter 0.03-0.64 mmLine Speed (Max.) 1500-2500 m/minNo. of Dies (Max.) 14-25Motor Power 5.5-385 KWTake-up Power 2.2-22 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

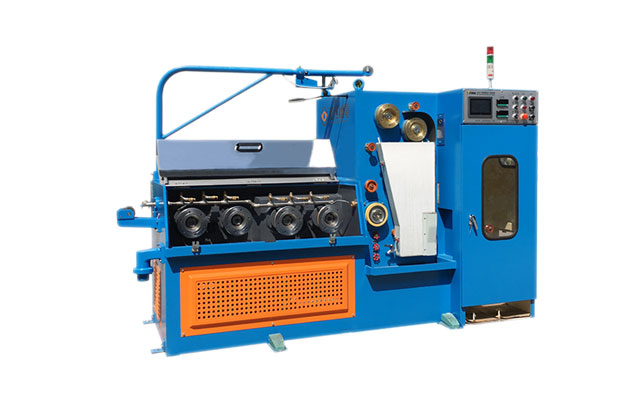

Fine Copper Wire Drawing Machine
The fine copper wire drawing machine is a high-precision equipment designed to process medium or thick copper wire (such as diameter 0.5-1.2 mm) into ultrafine copper wire (such as 0.05-0.4 mm) through multi pass stretching process. It is mainly used in fields such as microelectronics, precision instruments, medical equipment, etc. Its core function is to achieve precise reduction of wire diameter through step-by-step mold stretching and precise tension control, while optimizing the roundness, surface smoothness, and mechanical properties of the wire.
Fine Copper Wire Drawing Machine Datasheet
| Item/Model |
FS Series |
FD Series |
FM Series |
| No. of Wires |
1 |
2 |
4-20 |
| Inlet Wire Dia. |
0.15-1.6 mm |
0.6-1.6 mm |
1.5-2.6 mm |
| Outlet Wire Dia. |
0.03-0.6 mm |
0.12-0.5 mm |
0.15-0.64 mm |
| Line Speed (Max.) |
2000-2500 m/min |
2000 m/min |
1500-1800 m/min |
| No. of Dies (Max.) |
14-24 |
24 |
19-25 |
| Drawing Wheel |
φ120-316 mm |
/ |
φ100-120 mm |
| Fixed Speed Wheel |
φ120-268 mm |
/ |
φ140-200 mm |
| Main Motor |
5.5-18.5 KW |
18.5-30 KW |
37-385 kW |
| Take-up Motor |
2.2-3.7 KW |
4.4-7.4 KW |
15-22 KW |
| Annealing Motor |
/ |
/ |
/ |
| Control Mode |
Double frequency converter |
/ |
/ |
| Traverse Method |
Belt drive+synchronous motor |
/ |
/ |
| Lubrication |
Spray type |
/ |
/ |
| Brake |
Electromagnetic brake |
/ |
Pneumatic / Electromagnetic brake |
| Take-up Spool |
φ200-300 mm |
φ300 mm |
φ630 mm |
Fine Copper Wire Drawing Machine Application
The fine copper wire drawing machine is mainly used in fields such as microelectronics, precision instruments, medical equipment, etc. Specifically, as follows:
Microelectronics FieldUsed for manufacturing integrated circuit leads, miniature inductor coils, etc.
Medical EquipmentUltra fine copper wire used for surgical instrument leads and biosensors.
Precise InstrumentUsed to produce high-precision instrument springs, micro motor winding wires, etc., relying on the uniformity and fatigue resistance of the wires.
New Energy and PhotovoltaicsMicro conductors used for manufacturing photovoltaic welding strips and electric vehicle wiring harnesses.
Special Wire ProcessingUsed for precision stretching of composite materials such as copper-clad aluminum wire and tin plated copper wire.
