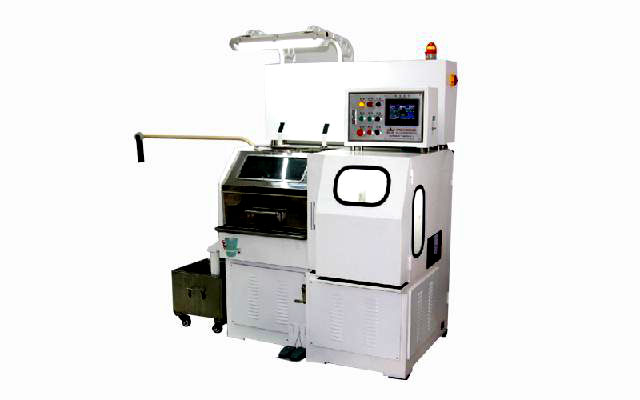

100F Dual Frequency Conversion Ultrafine Gold Wire Drawing Machine

100F Dual Frequency Conversion Ultrafine Gold Wire Drawing Machine

100F dual frequency conversion ultra-fine gold wire drawing machine is a precision equipment specifically designed for producing high-precision gold wires with a diameter of 20-40 microns (0.02-0.04 mm), widely used in semiconductor packaging, precision electronics, medical equipment, high-end jewelry and other fields. Due to the extremely small diameter of the gold wire, the equipment needs to have core technologies such as ultra-high precision tension control, nanoscale molds, and clean environments.

100F Dual Frequency Conversion Ultrafine Gold Wire Drawing Machine Datasheet

Item/Model	100F
Inlet Wire Dia.	0.055-0.120 mm
Outlet Wire Dia.	0.022-0.040 mm
Line Speed (Max.)	1800 m/min
No. of Dies (Max.)	24
Reduction Rate	8%, final: 7%
Drawing Method	Tower wheels: 2 sets, Fixed speed wheels: 2 sets, spray sliding type.
Tower Wheel	Tower wheels: φ100x14 sections, 2 sets; Fixed speed wheels: φ100, 2 sets; Spray ceramic tower wheel.
Main Motor	3 KW
Take-up Motor	1.1 KW
Traverse Motor	0.4 KW
Pump Motor	120 W
Lighting	220V, 40W
Brake	24V, 30W
Speed Control	Potentiometer
Traverse Method	Ball screw transmission
Lubrication	Downward spray tower transportation, automatic spraying (with water tank, water pump and pay off rack).
Overall Size	1825x1055x1660 mm
Total Weight	1.1 T

100F Dual Frequency Conversion Ultrafine Gold Wire Drawing Machine Application

100F dual frequency conversion ultra-fine gold wire drawing machine is the core equipment for high-precision manufacturing, with its technical core consisting of nanoscale molds, constant tension control, and clean environment. With the development of semiconductor miniaturization and precision medical devices, this equipment will play a more critical role in high-end electronics, biomedicine, aerospace and other fields, and continue to evolve towards finer, smarter and more environmentally friendly directions.
