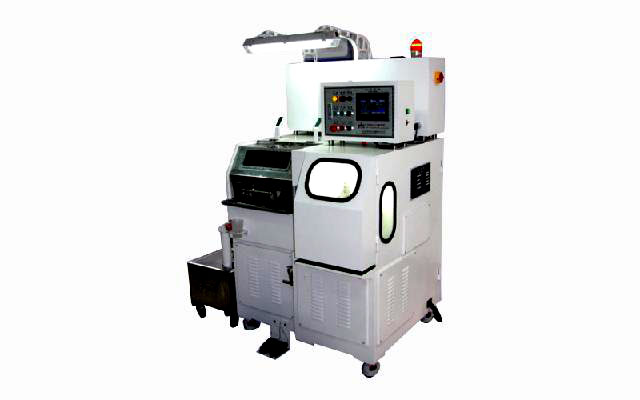

60F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine

60F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine

60F dual frequency conversion ultra-fine silver wire drawing machine is a precision equipment specifically designed for producing high-precision silver wires with a diameter of 10-30 microns (0.01-0.03 mm), widely used in precision electronics, high-end jewelry, medical and scientific research fields.

60F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine Datasheet

Item/Model	60S
Inlet Wire Dia.	0.018-0.038 mm
Outlet Wire Dia.	0.012-0.025 mm
Line Speed (Max.)	1200 m/min
No. of Dies (Max.)	12
Reduction Rate	6%, final: 5%
Drawing Method	Tower wheels: 2 sets, Fixed speed wheels: 2 sets, spray sliding type.
Tower Wheel	Tower wheels: φ60x11 sections, 2 sets; Fixed speed wheels: φ60, 2 sets; Spray ceramic tower wheel.
Main Motor	1.5 KW
Take-up Motor	Servo, 0.4 KW
Traverse Motor	0.4 KW
Pump Motor	90 W
Lighting	/
Brake	24V, 22W
Speed Control	Potentiometer
Traverse Method	Stepper motor light scanning, servo motor, ball screw transmission, and spool movement.
Lubrication	Downward spray tower transportation, automatic spraying (with water tank, water pump and pay off rack).
Overall Size	1450x1020x1580 mm
Total Weight	1.0 T

60F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine Application

60F dual frequency conversion ultra-fine silver wire drawing machine is mainly used in the following scenarios:
1. Precision electronic components (such as integrated circuit bonding wires, sensor wires)
2. High end jewelry (such as ultra-fine silver chains and micro inlaid silk)
3. Medical field (such as silver alloy wire for dental restoration).
