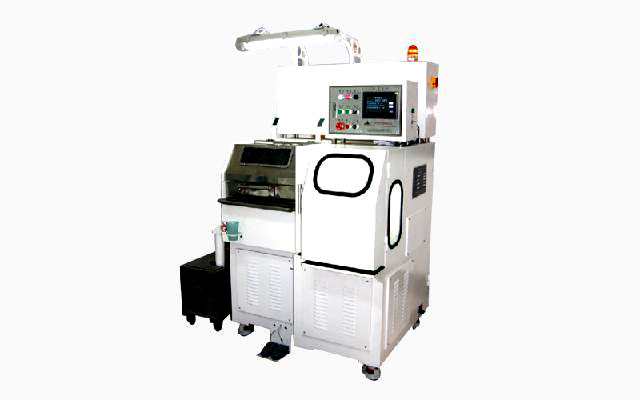

85S Full Servo Ultrafine Gold Wire Drawing Machine

85S Full Servo Ultrafine Gold Wire Drawing Machine

85S full servo ultrafine gold wire drawing machine is a fully servo tension-free rod wire drawing machine, which has the advantages of full computer control, servo wire arrangement, non-contact automatic parking and full plate automatic parking for wire breakage, and full linear automatic control of wire winding slip (tension) throughout the process. This machine integrates wire collection and cable laying, with servo control of angular velocity and cable pitch, back and forth collection and laying of wire reels, high wire speed, large capacity, and stepless speed regulation.

85S Full Servo Ultrafine Gold Wire Drawing Machine Datasheet

Item/Model	85S
Inlet Wire Dia.	0.027-0.057 mm
Outlet Wire Dia.	0.017-0.035 mm
Line Speed (Max.)	800 m/min
No. of Dies (Max.)	16
Reduction Rate	6%, final: 5%
Drawing Method	Tower wheels: 2 sets, Fixed speed wheels: 2 sets, spray sliding type.
Tower Wheel	Tower wheels: φ85x14 sections, 2 sets; Fixed speed wheels: φ85, 2 sets; Spray ceramic tower wheel.
Main Motor	Servo, 0.75 KW * 4
Take-up Motor	Servo, 0.4 KW
Traverse Motor	0.4 KW
Pump Motor	90 W
Lighting	220V, 40W
Brake	24V, 22W
Speed Control	Potentiometer
Traverse Method	Servo motor, ball screw drive, spool movement
Lubrication	Downward spray tower transportation, automatic spraying (with water tank, water pump and pay off rack).
Overall Size	1520x1090x1580 mm
Total Weight	1.0 T

85S Full Servo Ultrafine Gold Wire Drawing Machine Application

85S full servo ultra-fine gold wire drawing machine is the core equipment for high-precision manufacturing, with its technical core consisting of nanoscale molds, constant tension control, and clean environment. With the development of semiconductor miniaturization and precision medical devices, this equipment will play a more critical role in high-end electronics, biomedicine, aerospace and other fields, and continue to evolve towards finer, smarter and more environmentally friendly directions.
