Model 50-80Screw Diameter φ50-80 mmL/D Ratio 26:1Extrusion Output 70-220 kg/hrMain Motor 11-55 KWOutlet Diameter 0.75-18 mmSpeed 350-500 m/minApplication Automotive low-voltage cable
Automotive Low-voltage Cable Extrusion Line
The automotive low-voltage cable extrusion line is the core equipment for manufacturing automotive low-voltage cables, which is used to evenly wrap insulation or sheath materials (such as PVC, XLPE, TPE, etc.) on the surface of conductors to form complete wires and cables. The process directly affects the electrical performance, mechanical strength, and environmental adaptability of the cable.
Composition of Production Line
The automotive low-voltage cable extrusion line mainly includes the following core equipment:
Pay off Stand: Release copper/aluminum conductors to maintain stable tension.
Preheating Unit: Heat the conductor to improve insulation adhesion.
Extruder: Melt PVC/XLPE and evenly coat the conductor.
Cooling Tank: Segmented cooling and shaping insulation layer.
Haul off: Control the speed of the production line.
Take-up Reel: Automatic winding of finished wires.
Testing Equipment: Spark tester, laser diameter measuring system, etc.
Process Flow
Pay-off → Preheating → Extrusion coating → Cooling and shaping → Spark detection → Printing → Take-up.
Automotive Low-voltage Cable Extrusion Line Datasheet
| Model |
50 |
60 |
70 |
80 |
| Pay-off Type |
Active or passive |
Active or passive |
Active or passive |
Active or passive |
| Screw Diameter |
φ50 mm |
φ60 mm |
φ70 mm |
φ80 mm |
| Screw L/D Ratio |
25:1 |
26:1 |
26:1 |
26:1 |
| Extrusion Amount |
70 kg/hr |
110 kg/hr |
160 kg/hr |
220 kg/hr |
| Outlet Wire |
φ0.75-4 mm |
φ0.8-8 mm |
φ1.5-12 mm |
φ2-18 mm |
| Main Motor |
11 KW |
18.5 KW |
37 KW |
55 KW |
| Cooling Device |
U type |
U type |
U type |
U type |
| Storage Rack |
Horizontal |
Horizontal |
Horizontal |
Horizontal |
| Traction Power |
4 KW |
4 KW |
4 KW |
5.5 KW |
| Production Speed |
500 m/min (Max.) |
450 m/min (Max.) |
400 m/min (Max.) |
350 m/min (Max.) |
| Take-up Spool |
φ400-630 mm |
φ400-630 mm |
φ500-630 mm |
φ800-1000 mm |
| Coiling Method |
Automatic |
Automatic |
Automatic |
Automatic |

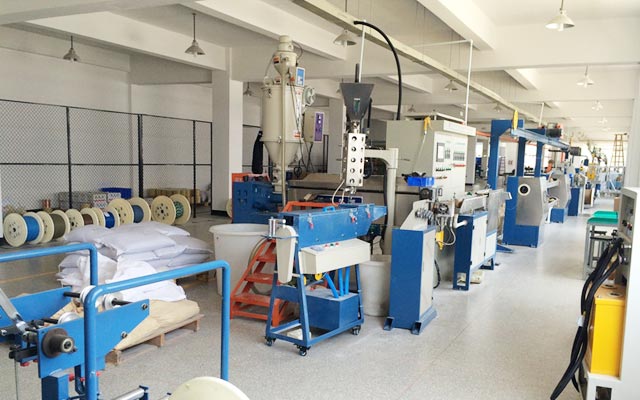

Automotive Low-voltage Cable Extrusion Line Application
The automotive low-voltage cable extrusion line is the core equipment for manufacturing automotive low-voltage cables, which is used to evenly wrap insulation or sheath materials (such as PVC, XLPE, TPE, etc.) on the surface of conductors to form complete wires and cables. The process directly affects the electrical performance, mechanical strength, and environmental adaptability of the cable.
