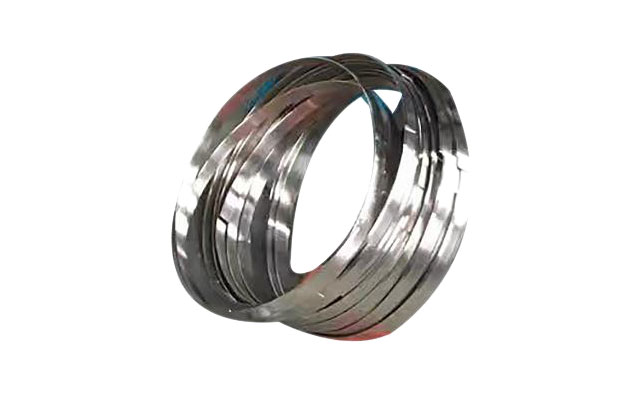

Nickel Strip Conductive Ring for Medium-Sized Wire Drawing Machines
Nickel strip conductive ring is a rotating conductive component designed specifically for medium-sized wire drawing machines. It achieves dynamic current transmission, stable signal transmission (compatible with RS485/CAN bus), and replaces traditional carbon brushes through the sliding contact of nickel alloy strip, solving dust pollution problems.
Core Features
High conductivity: Pure nickel has low resistivity and high current transmission efficiency.
High temperature resistance: With a melting point of up to 1455 ° C, it is suitable for high-temperature annealing environments (usually 400~800 ° C).
Anti oxidation/corrosion resistance: Forms a dense oxide film at high temperatures to prevent further corrosion.
Wear resistance: Suitable for high-speed rotation (such as continuous annealing wire of wire drawing machine).
Nickel Strip Conductive Ring for Medium-Sized Wire Drawing Machines Datasheet
| Model |
Size (mm) |
| C355 |
Φ355x26x3 |
| C300 |
Φ300x25x3; Φ300x18x2; Φ300x15x2; Φ300x12x2 |
| C280 |
Φ280x15x2 |
| C250 |
Φ250x20x2; Φ250x20x1.5; Φ250x15x2 |
| C200 |
Φ200x22x2; Φ200x22x1.5; Φ200x15x2; Φ200x12x1.5 |
| C160 |
Φ160x12x1.5 |
| C150 |
Φ150x15x2 |
Nickel Strip Conductive Ring for Medium-Sized Wire Drawing Machines Application
Nickel strip conductive ring is a rotating conductive component designed specifically for medium-sized wire drawing machines. It achieves dynamic current transmission, stable signal transmission (compatible with RS485/CAN bus), and replaces traditional carbon brushes through the sliding contact of nickel alloy strip, solving dust pollution problems.
