Wire Drawing Die

Wire Drawing Die

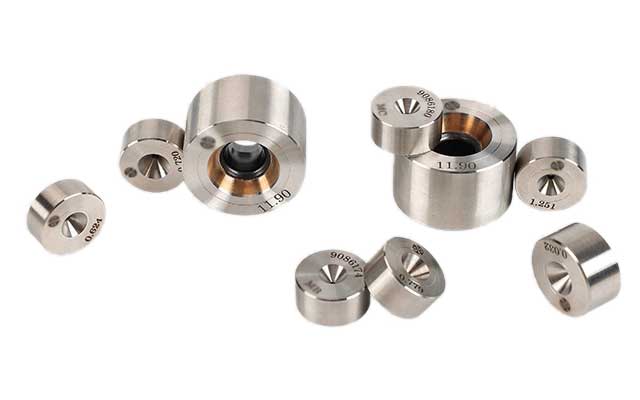

Wire drawing dies are key tools in metal wire processing, used to pull metal billets (such as steel, copper, aluminum, etc.) from larger diameters into smaller diameter wires through stretching processes. The core principle is to apply pressure to the metal through the holes inside the mold, causing it to undergo plastic deformation while maintaining surface quality and dimensional accuracy.

Basic Structure

Entrance area: Guide metal wires into the mold to reduce frictional resistance.
Compression zone (working zone): A conical area where metal undergoes plastic deformation and the diameter decreases.
Calibration zone: Ensure that the wire reaches the precise final size and surface finish.
Export area: Protect the wire from scratches when exiting.

Wire Drawing Die Datasheet

Model	Size Range	Wire Types
Natural Diamond Wire Drawing Die	0.0008-8 mm	Cu, Al, W, Mo, stainless steel, alloy wires, etc.
PCD Wire Drawing Die	0.0008-8 mm	Cu, Al, W, Mo, stainless steel, alloy wires, etc.
Tungsten Carbide Wire Drawing Die	0.05-35 mm	Cu, Al, W, Mo, stainless steel, alloy, precious metal wires, etc.
Mono Diamond Drawing Die	0.01-1.3 mm	Cu, Al, W, Mo, stainless steel, alloy, precious metal wires, etc.

Wire Drawing Die Application

Wire drawing dies are key tools in metal wire processing, used to pull metal billets (such as steel, copper, aluminum, etc.) from larger diameters into smaller diameter wires through stretching processes. It is mainly used in the following situations:
Wire and Cable
The drawing of copper and aluminum conductors.
Metal Products
Steel wire rope, welding wire, spring wire, etc.
Precision Electronics
Bonding wire, ultra-fine bonding wire.
Industrial Accessories
Wire for screws and rivets.
