Spring Steel Stranding Bow for Stranding Machine

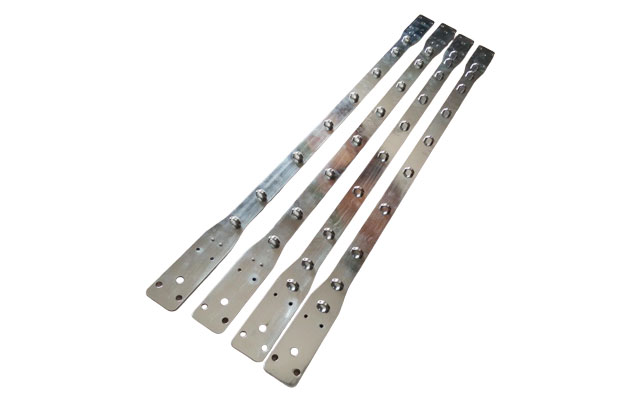

Spring Steel Stranding Bow

Spring Steel Stranding Bow is a core component of a twisting machine made of high elastic spring steel (such as 60Si2MnA, 65Mn, etc.), designed specifically for twisting processes with high strength and high fatigue life requirements. It effectively absorbs vibrations and maintains stable tension control during the twisting process through the elastic deformation ability of the material, making it particularly suitable for large-sized metal wires and high-speed working conditions.

Core Features

High elastic modulus (≥ 200 GPa): Not easily deformed under repeated bending loads.
Excellent fatigue resistance: Can withstand>10 cycles of stress (3-5 times longer than ordinary carbon steel).
Fast dynamic response: When twisted at high speeds (>1000 RPM), it can quickly counteract wire shaking.
Wear resistant surface: Optional hard chrome plating or nitriding treatment (surface hardness HRC ≥ 55).

Spring Steel Stranding Bow Datasheet

Model	Size	Customizable
Spring Steel Stranding Bow	1100x30x2 mm 1200x30x2 mm	Support

Spring Steel Stranding Bow Application

Spring Steel Stranding Bow is a core component of stranding machines manufactured from high-elasticity spring steel (e.g., 60Si2MnA, 65Mn), specifically designed for stranding processes requiring high strength and fatigue resistance. Its primary applications include:
High-Voltage Cables
Application: Stranding of aluminum conductor steel-reinforced (ACSR) cables and aluminum-clad steel wires;
Advantage: Withstands differential tension between aluminum wires and steel core.
Marine Engineering Cables
Application: Ship mooring cables and deep-sea umbilical cables;
Special Requirement: Salt spray corrosion resistance (requires zinc-nickel alloy coating).
Special Steel Wire Ropes
Application: Elevator cables and mining hoist ropes;
Typical Operating Condition: Instantaneous impact load ≥5 times static tension.
Automotive Wire Harnesses
Application: Stranding of high-flexibility shielded wires;
Precision Requirement: Pitch tolerance ±0.1mm.
