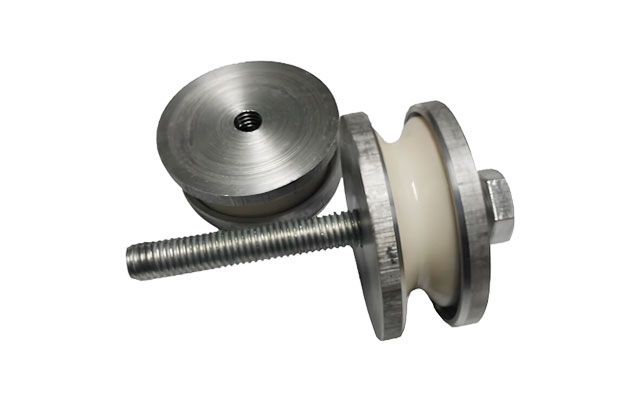

Stranding Bow Guide Wheel

Stranding Bow Guide Wheel

Stranding Bow Guide Wheel (also called Wire Guide Sheave) is a critical guiding component in the stranding bow system of wire stranding machines, designed to precisely control the movement trajectory and tension distribution of multiple wire strands during the stranding process. Its core functions include:
Directional Guidance: Ensures each wire strand enters the stranding point at preset angles;
Friction Management: Reduces the sliding friction coefficient between wires and the guide wheel;
Tension Equalization: Achieves ≤5% tension deviation among strands through multi-wheel configuration.

Stranding Bow Guide Wheel Datasheet

Name	Stranding Bow Guide Wheel
Size of Ceramic Wheels	φ38x13 mm
Weight	0.02 kg
Material	Protective cover aluminum alloy intermediate composite ceramic
Quantity	10 pcs/bag

Stranding Bow Guide Wheel Application

Stranding Bow Guide Wheel (also called Wire Guide Sheave) is a critical guiding component in the stranding bow system of wire stranding machines, designed to precisely control the movement trajectory and tension distribution of multiple wire strands during the stranding process. It is mainly used for stranding bows of stranding machines of various soft/hard conductor wires (copper wire, enameled wire, tin plated wire, copper-clad steel, copper-clad aluminum, etc.) and electronic wires (such as power lines, headphone lines, telephone lines, PVC lines, network lines, etc.)
