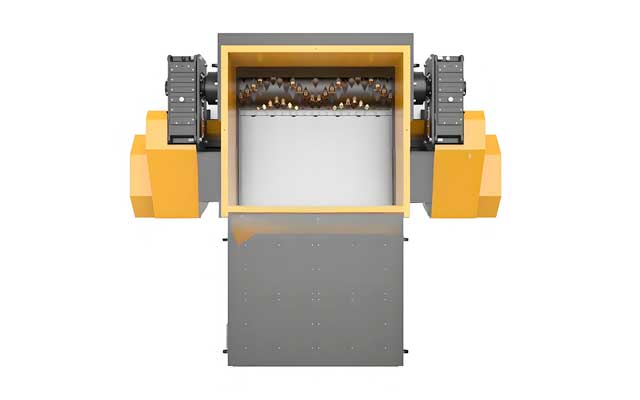

Single-shaft Copper Cable Shredder

Single-shaft Copper Cable Shredder

The single-shaft copper cable shredder is a crushing device that operates on the principle of single rotating blade shaft + stationary blade shearing, suitable for the coarse crushing and volume reduction of medium- to low-hardness materials. With its compact structure and easy maintenance, it is widely used in the shredding and recycling of plastics, rubber, wood, paper, and other materials.

Structural Composition

The single-shaft shredder consists of the following components:
Machine frame & housing;
Feeding pusher;
Shredding main shaft;
Hydraulic system;
Fluid coupling;
Feed hopper;
Gear motor;
Belt cover;
Electric motor;
V-belts.

Key Components

Shredder Main Shaft
The moving blades are made of wear-resistant alloy steel and can be repositioned multiple times for extended use. The stationary blades are adjustable, allowing for a wider shredding range by modifying the blade clearance.
Feeding Pusher
The pusher’s bottom plate is reinforced to withstand repeated impact during feeding without deformation. A dust collection system is installed at the bottom to ensure long-term stable operation of internal components.
Screen Mesh
Different types and sizes of screens can be replaced to meet varying requirements. The shredder automatically stops when the screen is opened, ensuring operational safety.
Power System
The intelligent hydraulic control adjusts the pusher speed: Fast feeding for easily shredded materials.
Slower feeding for tough materials to prevent rotor overload. Each hydraulic system is equipped with a cooling system to maintain stable long-term operation.

Single-shaft Copper Cable Shredder Datasheet

Model	Crushing Chamber (mm)	Power (KW)	Feed Inlet (mm)	Discharge Height (mm)
65	650	22+1.5	1200 x 900	460
75	750	45+1.5	1250 x 1300	800
90	900	55+2.2	1250 x 1500	800
110	1100	75+5.5	1250 x 1700	800
140	1400	90+5.5	1800 x 1400	800
160	1600	75*2+7.5	2000 x 1500	800
210	2100	90*2+11	2200 x 1500	950
250	2500	220-264	2500 x 1500	950
300	3000	264-400	3000 x 1500	950

Single-shaft Copper Cable Shredder Application

The single-shaft copper cable shredder is a crushing device that operates on the principle of single rotating blade shaft + stationary blade shearing, suitable for the coarse crushing and volume reduction of medium- to low-hardness materials. With its compact structure and easy maintenance, it is widely used in the shredding and recycling of plastics, rubber, wood, paper, and other materials. The details are as follows:
1. Wire and cable;
2. Wood or wooden pallets;
3. Waste circuit boards;
4. Waste paper;
5. Rubber head material or engineering plastic;
6. PE pipes;
7. Aluminum shavings;
8. Woven bag;
9. Solid waste;
10. Thin film.
