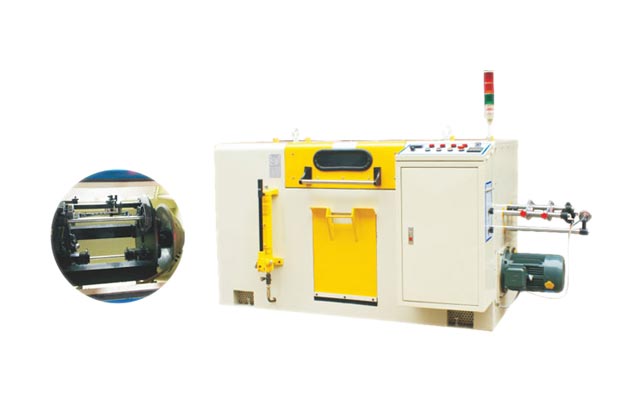

400 Silver-plated Copper Wire Double Twist Strander

400 Silver-plated Copper Wire Double Twist Strander

400 silver-plated copper wire double twist strander is a specialized wire stranding machine used for conductors such as 7 strands or more of 0.08-0.45 mm silver-plated copper wire.

400 Silver-plated Copper Wire Double Twist Strander Datasheet

Model	400
Inlet Wire Dia.	0.08-0.45 mm
Stranded Cross Section	0.35-1.25 mm2
Lay Length	4.06-31.5 mm
Rotation Speed	2500/3500 rpm
Main Motor	5HP/7.5HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ400 mm
Lifting System	Manual operation
Noise Level	75 dB

400 Silver-plated Copper Wire Double Twist Strander Application

400 silver-plated copper wire double twist strander is suitable for twisting silver-plated copper, copper-clad aluminum, copper-clad steel, bare copper wire, enameled wire, alloy wire, and tin plated wire with seven or more strands.
