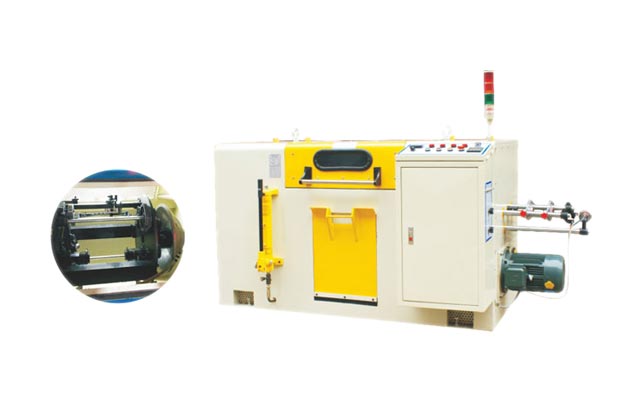

400 Tinned Copper Wire Double Twist Strander

400 Tinned Copper Wire Double Twist Strander

400 tinned copper wire double twist strander is a specialized wire stranding machine used for conductors such as 7 strands or more of 0.08-0.45 mm tinned copper wire.

400 Tinned Copper Wire Double Twist Strander Datasheet

Model	400
Inlet Wire Dia.	0.08-0.45 mm
Stranded Cross Section	0.35-1.25 mm2
Lay Length	4.06-31.5 mm
Rotation Speed	2500/3500 rpm
Main Motor	5HP/7.5HP
Lay Direction	S/Z
Traversing Device	/
Braking System	Electronic brake
Take-up Tension	Magnetic powder clutch control
Take-up Spool	φ400 mm
Lifting System	Manual operation
Noise Level	75 dB

400 Tinned Copper Wire Double Twist Strander Application

400 tinned copper wire double twist strander is suitable for twisting tinned copper, copper-clad aluminum, copper-clad steel, bare copper wire, enameled wire, alloy wire, and tin plated wire with seven or more strands.
