Model 150Inlet Wire Dia. 0.01-0.03 mmStranded Cross Section /Lay Length 0.54-6.00 mmRotation Speed 2000 rpmMain Motor 3HPTake-up Spool φ145 mmConductor Type Tinned copper wire, copper alloy wire, etc.

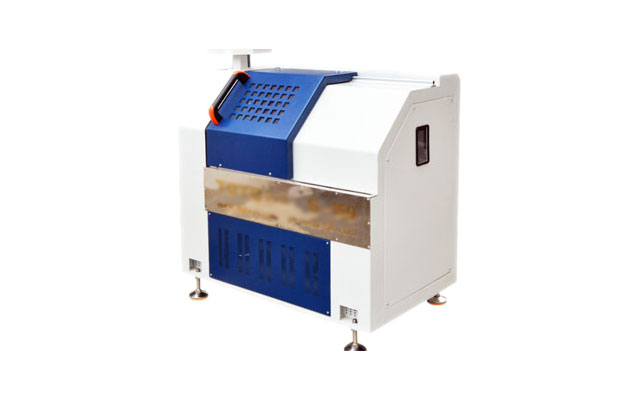

150 Extreme-fine TC Wire Single Twist Strander
150 extreme-fine tinned copper (TC) wire single twist strander is a type of micro wire stranding machine suitable for 0.010-0.03 mm. It is mainly suitable for stranding 0.01-0.03 mm ultra-fine tinned copper wire, silver plated copper wire, and copper alloy wire.
Application and Features
1. Suitable for stranding ultra-fine tin-plated copper wire, silver-plated copper wire, and other copper alloy wires.
2. Equipped with built-in single twisting function.
3. Simple operation and easy maintenance.
4. High-quality components ensure stable operation and longer service life.
5. Frequency-conversion controlled motor allows easy speed adjustment and provides overload protection.
6. Standardized spare parts supply and comprehensive after-sales service.
150 Extreme-fine TC Wire Single Twist Strander Datasheet
| Model |
150 |
| Inlet Wire Dia. |
0.01-0.03 mm |
| Stranded Cross Section |
/ |
| Lay Length |
0.54-6.00 mm |
| Rotation Speed |
2000 rpm |
| Main Motor |
3HP |
| Lay Direction |
S/Z |
| Traversing Device |
Servo ball screw traversing system |
| Take-up Spool |
φ145 mm |
| Noise Level |
75 dB |
150 Extreme-fine TC Wire Single Twist Strander Application
150 extreme-fine tinned copper (TC) wire single twist strander is a type of micro wire stranding machine suitable for 0.010-0.03 mm. It is mainly suitable for stranding 0.01-0.03 mm ultra-fine tinned copper wire, silver plated copper wire, and copper alloy wire.
