Model 150Inlet Wire Dia. 0.01-0.03 mmStranded Cross Section /Lay Length 0.54-6.00 mmRotation Speed 2000 rpmMain Motor 3HPTake-up Spool φ145 mmConductor Type Copper wire, copper alloy wire, etc.

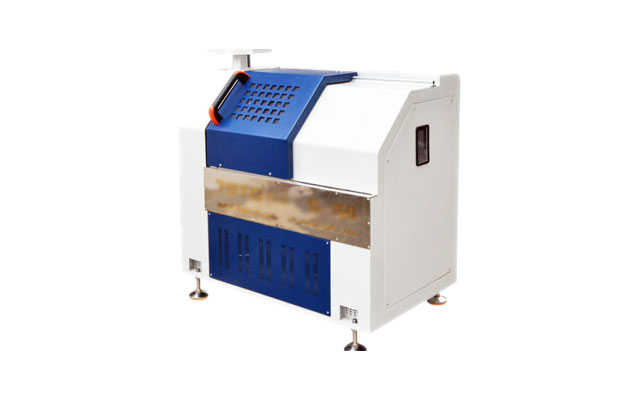

Copper Wire Single Twist Stranding Machine
Copper wire single twist stranding machine is a type of micro wire stranding machine suitable for 0.010-0.03 mm. It is mainly suitable for stranding 0.01-0.03 mm ultra-fine copper wire, tinned copper wire, silver plated copper wire, and copper alloy wire.
Copper Wire Single Twist Stranding Machine Datasheet
| Model |
150 |
| Inlet Wire Dia. |
0.01-0.03 mm |
| Stranded Cross Section |
/ |
| Lay Length |
0.54-6.00 mm |
| Rotation Speed |
2000 rpm |
| Main Motor |
3HP |
| Lay Direction |
S/Z |
| Traversing Device |
Servo ball screw traversing system |
| Take-up Spool |
φ145 mm |
| Noise Level |
75 dB |
Copper Wire Single Twist Stranding Machine Application
Copper wire single twist stranding machine is a type of micro wire stranding machine suitable for 0.010-0.03 mm. It is mainly suitable for stranding 0.01-0.03 mm ultra-fine copper wire, tinned copper wire, silver plated copper wire, and copper alloy wire.
