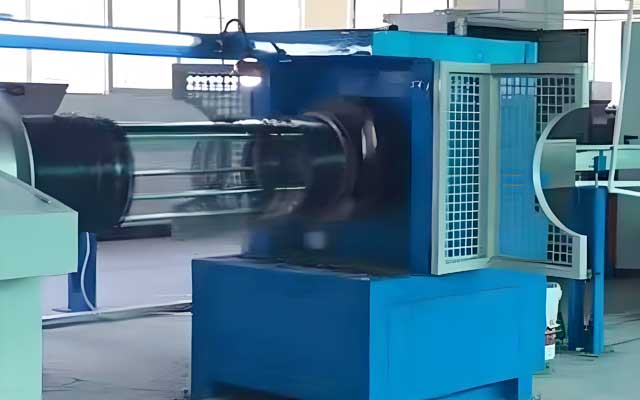

Elephant-trunk Type Traction Take-up Machine

Elephant-trunk Type Traction Take-up Machine

Elephant-trunk type traction take-up machine is an innovative winding equipment, named after its unique flexible guiding arm structure (resembling an elephant trunk), designed for low damage winding of large diameter/heavy cables (such as submarine cables and ultra-high voltage power cables). This device uses biomimetic principles to achieve three-dimensional adaptive guidance of cables, solving the problem of twisting stress on thick cables caused by traditional cable winding machines.

Elephant-trunk Type Traction Take-up Machine Datasheet

Name	Elephant-trunk Type Traction Take-up Machine
Dia. of Wires	0.5-4.5 mm
Line Speed	0-300 m/min
Dia. of Traction Wheel	φ380 mm
Application	Used for low damage winding of large diameter/heavy cables.
Meter Counter	Automatic length-measuring device with preset cut-off function

Elephant-trunk Type Traction Take-up Machine Application

Elephant-trunk type traction take-up machine is an innovative winding equipment, designed for low damage winding of large diameter/heavy cables (such as submarine cables and ultra-high voltage power cables).
