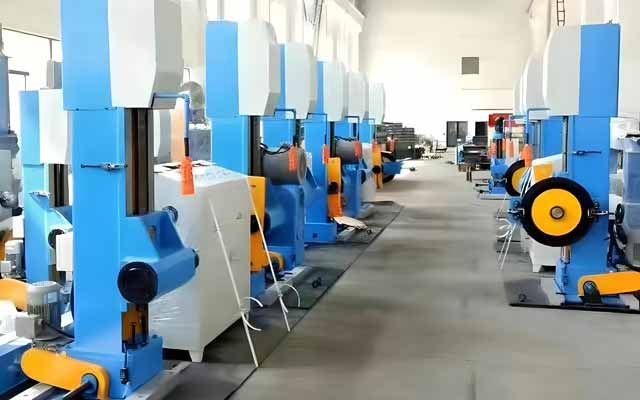

End-shaft Take-up Machine
End-shaft take-up machine is a cable winding equipment designed with an end support shaft, which fixes the wire reel by mechanical clamping and is suitable for winding operations of large and medium-sized wire reels. It has a simple structure and is easy to operate and maintain, making it the basic winding equipment in the production of materials such as wires, cables, and metal wires.
End-shaft Take-up Machine Datasheet
| Name |
End-shaft Take-up Machine |
| Dia. of Wires |
12-120 mm |
| Lifting Range |
600-1330 mm |
| Lifting Speed |
0.6 m/min |
| Wire Spool |
φ1250-2500 mm |
| Motor Power |
1.1 KW |
| Tension Control |
Disc friction disc |
| Payload |
Max. 12 tons |
End-shaft Take-up Machine Application
End-shaft take-up machine is a cable winding equipment designed with an end support shaft, which fixes the wire reel by mechanical clamping and is suitable for winding operations of large and medium-sized wire reels. It has a simple structure and is easy to operate and maintain, making it the basic winding equipment in the production of materials such as wires, cables, and metal wires.
