Gantry-type Pay-off Stand

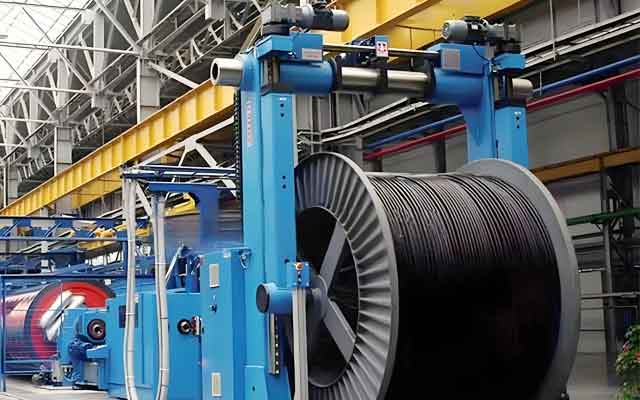

The gantry-type pay-off stand is a heavy-duty unwinding equipment featuring a gantry frame structure, specifically designed for large-diameter, heavy-weight spools. It is widely used in the production of power cables, submarine cables, ultra-high voltage cables, and other heavy wire materials.This equipment is mainly used for wire/cable unwinding processes during: cross-linking, cable forming, stranding, armoring, extrusion, rewinding, etc.
Gantry-type Pay-off Stand Datasheet
| Name |
Gantry-type Pay-off Stand |
| Dia. of Wires |
0-60 mm |
| Line Speed |
0-20 m/min |
| Wire Spool |
φ630-2500 mm |
| Width of Spool |
475-1180 mm |
| Spool Weight |
12 tons |
| Lift Motor |
1.1 KW |
| Clamping Motor |
0.75 KW |
| Application |
Used for unwinding in extrusion production, active pay-off for coiling machines, and pay-off for wire cutting machines, etc. |
| Tension Control |
Potentiometer adjusts tension |
| Braking System |
/ |
| Spool Lifting |
Gearbox controls lifting and lowering |
Gantry-type Pay-off Stand Application
The gantry-type pay-off stand is a heavy-duty unwinding equipment featuring a gantry frame structure, specifically designed for large-diameter, heavy-weight spools. It is widely used in the production of power cables, submarine cables, ultra-high voltage cables, and other heavy wire materials.This equipment is mainly used for wire/cable unwinding processes during: cross-linking, cable forming, stranding, armoring, extrusion, rewinding, etc.
