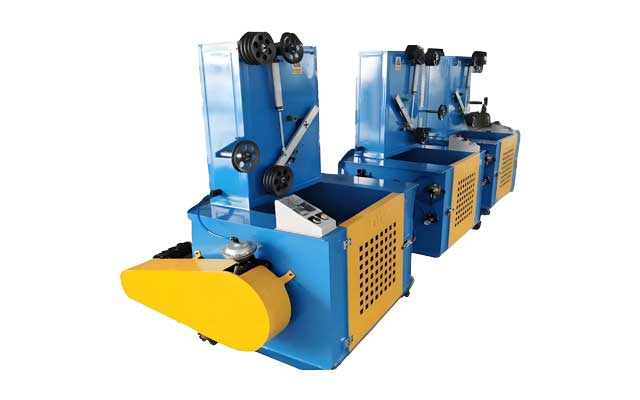

High-speed Active Tension Pay-off Machine

High-speed Active Tension Pay-off Machine

High speed active tension pay-off machine is a precision pay off equipment used for high-speed production lines of materials such as wires, cables, optical fibers, and metal wires. Its core feature is the use of a frequency converter to control tension, ensuring stable tension during high-speed operation and avoiding material stretching, deformation, or shaking. It can be used for wire drawing machine unwinding, extrusion production unwinding, winding machine unwinding, and other purposes.

High-speed Active Tension Pay-off Machine Datasheet

Name	High-speed Active Tension Pay-off Machine
Dia. of Wires	0-3 mm
Line Speed	0-1000 m/min
Wire Spool	φ630 mm
Application	Used for unwinding in extrusion production, active pay-off for coiling machines, and pay-off for wire cutting machines, etc.
Tension Control	The frequency converter controls the tension of the wire and adjusts it automatically.
Braking System	Equipped with start, stop, forward, and reverse control devices, it automatically tracks the speed of the wire receiving host and automatically stops when disconnected.

High-speed Active Tension Pay-off Machine Application

High speed active tension pay-off machine is a precision pay off equipment used for high-speed production lines of materials such as wires, cables, optical fibers, and metal wires. It can be used for wire drawing machine unwinding, extrusion production unwinding, winding machine unwinding, and other purposes.
