Dual-shaft Pay-off Stand

Dual-shaft Pay-off Stand

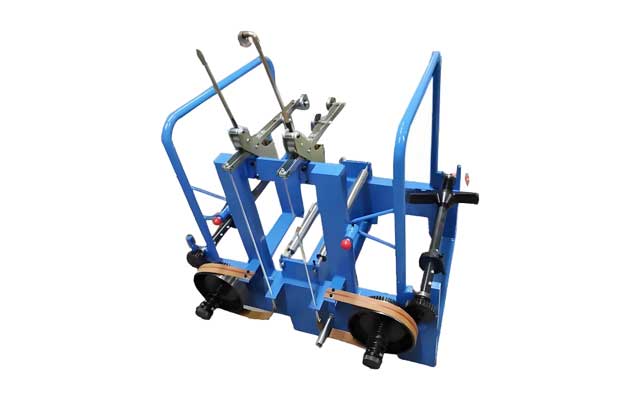

Dual-shaft Pay-off Stand is a dual station pay off equipment that can simultaneously support two independent wire reels. Through intelligent switching, continuous production is achieved, greatly reducing downtime for reel changing. Its structure is stable and space utilization is high, suitable for automated processing scenarios of medium and large wire rods.

Dual-shaft Pay-off Stand Datasheet

Name	Dual-shaft Pay-off Stand
Dia. of Wires	0.3-3.0 mm
No. of Wires	According to customer requirements
Line Speed	0-500 m/min
Wire Spool	φ400-800 mm
Application	Suitable for laying copper wires and insulated core wires
Tension Control	Tension control is achieved through the combination of eccentric wheel and guide wheel springs.
Braking System	It features automatic braking for both internal and external wire breaks, and automatic stop when the preset length is reached.
Dia. of Spool Shaft	/
Load Capacity	Max. 100 kg for the pay-off stand spool

Dual-shaft Pay-off Stand Application

Dual-shaft Pay-off Stand is a dual station pay off equipment that can simultaneously support two independent wire reels. Through intelligent switching, continuous production is achieved, greatly reducing downtime for reel changing. Its structure is stable and space utilization is high, suitable for automated processing scenarios of medium and large wire rods. It is mainly used for laying out copper wires, stranded wires, core wires, etc.
