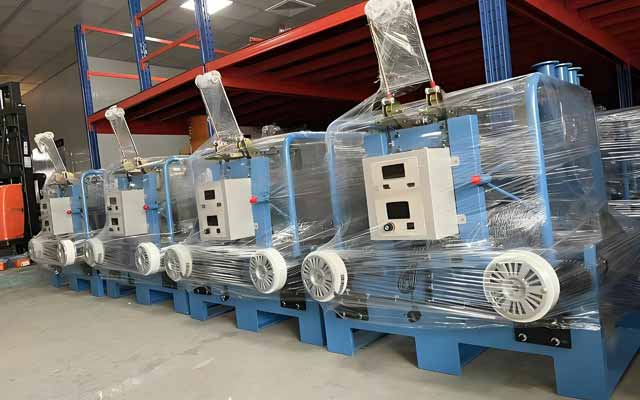

Magnetic Particle Tension Pay-off Stand
The magnetic particle tension pay-off stand is a wire unwinding device that utilizes a magnetic particle brake to achieve high-precision tension control. It is widely used in precision manufacturing applications requiring constant-tension unwinding. Its core feature lies in using electromagnetic principles to adjust magnetic particle resistance, enabling stepless speed variation and instantaneous response for tension control, thereby preventing wire breakage or slack.
Key Advantages
1. Precise tension control (accuracy within ±1%)
2. No mechanical friction → long lifespan & maintenance-free operation
3. Ultra-fast response (millisecond-level adjustment)
4. Low noise & low heat generation → suitable for continuous operation
Magnetic Particle Tension Pay-off Stand Datasheet
| Name |
Magnetic Particle Tension Pay-off Stand |
| Dia. of Wires |
0.3-3.0 mm |
| No. of Wires |
According to customer requirements |
| Line Speed |
0-500 m/min |
| Wire Spool |
OD 400-800 mm |
| Application |
Suitable for laying copper wires and insulated core wires |
| Tension Control |
5 kg magnetic particle tension control. |
| Braking System |
It features automatic braking for both internal and external wire breaks, and automatic stop when the preset length is reached. |
| Dia. of Spool Shaft |
/ |
| Load Capacity |
Max. 100 kg for the pay-off stand spool |
Magnetic Particle Tension Pay-off Stand Application
The magnetic particle tension pay-off stand is a wire unwinding device that utilizes a magnetic particle brake to achieve high-precision tension control. It is widely used in precision manufacturing applications requiring constant-tension unwinding. It is mainly used for laying out copper wires, twisted wires, core wires, etc.
