Pay-off Stand

Pay-off Stand

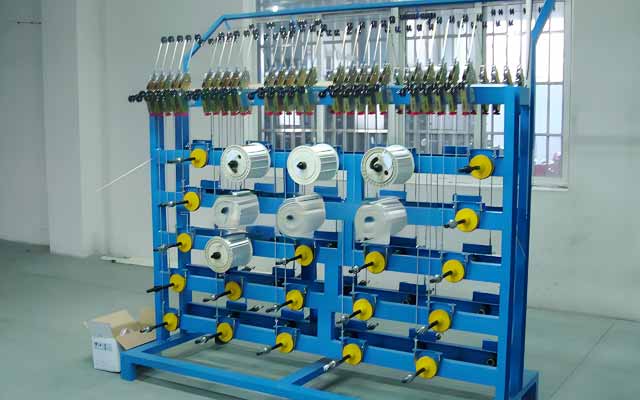

Pay-off Stand (also known as Pay-off Machine, Spool Stand, or Decoiler) is an auxiliary device used to support and unwind coiled materials such as wires, cables, steel wires, optical fibers, etc. It is widely used in industries including wire and cable, construction, power, telecommunications, and textiles. Its core function is to ensure stable tension during the unwinding process, prevent tangling or knotting, and improve work efficiency and material utilization.

Main Types

Active Pay-off Stand
Structure: Motor-driven with adjustable unwinding speed.
Features: Precise tension control, reducing manual intervention.
Applications: Fiber optic manufacturing, precision wire processing.
Passive Pay-off Stand
Structure: Relies on external force (e.g., a puller) to unwind the material, equipped with a damping system.
Features: Prevents material slack and maintains uniform tension.
Applications: Cable production lines, textile machinery.
Gantry-type Pay-off Stand
Structure: Gantry frame design capable of supporting oversized spools.
Features: High stability, adaptable to various spool sizes.
Applications: Ship cables, industrial-grade wires.

Core Functions

Spool Support: Compatible with reels of different inner diameters and weights.
Tension Control: Adjusts unwinding resistance via brakes, dampers, or motors.
Anti-Tangling Design: Equipped with rotating brackets or guide rollers for smooth material release.
Mobility: Some models include casters for easy relocation on job sites.

Pay-off Stand Datasheet

Name	Pay-off Stand
Type	Vertical, horizontal, etc.
No. of Wires	According to customer requirements
Application	Suitable for laying copper wires and insulated core wires

Pay-off Stand Application

Pay-off Stand is an auxiliary device used to support and unwind coiled materials such as wires, cables, steel wires, optical fibers, etc. It is widely used in industries including wire and cable, construction, power, telecommunications, and textiles.
