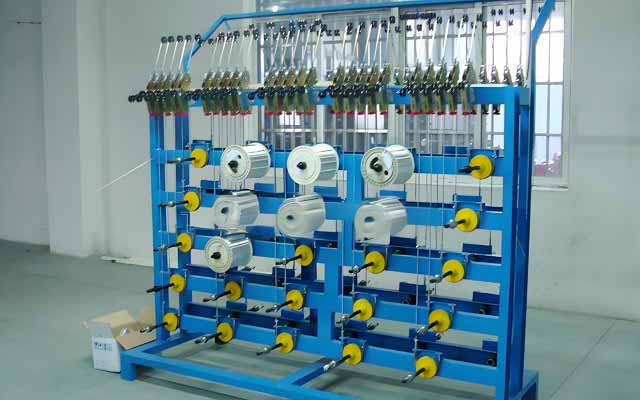

Vertical Tension Pay-off Stand
The Vertical Tension Pay-off Stand is a specialized unwinding device designed to support and release coiled materials (such as wires, cables, steel strands, and optical fibers) while maintaining precise tension control. Unlike horizontal models, it operates in an upright position, saving floor space and improving stability, especially for heavy or large-diameter spools.
Key Features
1. Vertical Design – Saves workspace and allows easy loading/unloading of spools.
2. Tension Control – Combination spring of eccentric wheel and guide wheel for tension control.
3. Wide Compatibility – Adjustable arms or chucks accommodate different spool sizes.
4. Stability & Safety – Robust base prevents tipping, even with heavy loads.
Vertical Tension Pay-off Stand Datasheet
| Name |
Vertical Tension Pay-off Stand |
| Dia. of Wires |
0.1-0.35 mm |
| No. of Wires |
According to customer requirements |
| Line Speed |
0-100 m/min |
| Wire Spool |
OD 130-200 mm, ID 20-36 mm |
| Application |
Suitable for laying copper wires and insulated core wires |
| Tension Control |
Tension control is achieved through the combination of eccentric wheel and guide wheel springs. |
| Braking System |
Equipped with belt friction braking, it features automatic braking for both internal and external wire breaks, and automatic stop when the preset length is reached. |
| Dia. of Spool Shaft |
M18x400 mm |
| Load Capacity |
Max. 25 kg for the pay-off stand spool |
Vertical Tension Pay-off Stand Application
The Vertical Tension Pay-off Stand is a specialized unwinding device designed to support and release copper wire or other conductors while maintaining precise tension control. It is mainly used for pay-off single copper wire, tin plated wire, etc.
