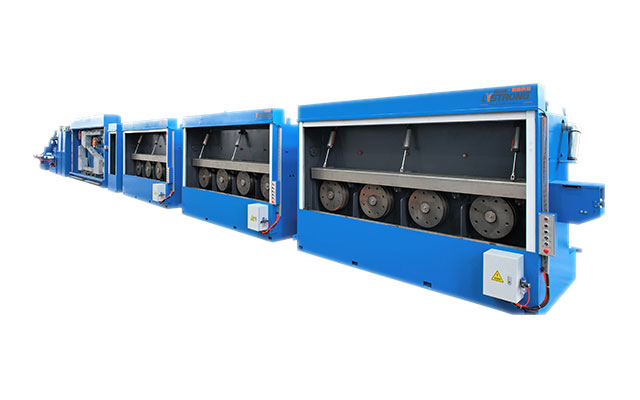

CB450D Dual-line Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing

CB450D Dual-line Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing

The CB450D dual-line coarse aluminum wire drawing machine line with continuous annealing is composed of equipment such as dual-line coarse aluminum wire drawing machine, dual-line continuous annealing machine, and take-up machine. It is mainly used for producing coarse aluminum wire of φ1.2-4.5 mm.

Characteristics and Advantages

Energy Conservation
Adopting a sub motor design, the main unit saves about 30% of electrical energy compared to traditional single motors, and can shut down unnecessary sub motor power; The annealing part adopts AC annealing, which saves about 15% energy.
Low Copper Loss
Adopting independent motor drive and micro sliding wire drawing. Less copper powder greatly reduces the production of copper powder.
Long Service Life
The use of micro slip design has significantly increased the service life of eye molds and tower wheels compared to traditional methods; The service life of wire drawing lubricant is greatly extended, greatly reducing production costs.
High Production Capacity
Using sub motor drive technology, when changing the diameter of the output line, the rapid mold change system process can be achieved; Adopting a human-computer interaction interface with mechanical indicators and electrical fault displays can reduce downtime. The compression ratio of each eye mold can be flexibly adjusted according to production requirements. Gearless transmission, low vibration, low noise, eliminates gear maintenance, greatly improves production efficiency.
Good Quality
The power of each wire drawing wheel is directly driven by a separate motor, and the compression ratio of the wire can be arbitrarily proportioned within a certain range according to the requirements of the wire drawing process. The finished product has a higher smoothness and greatly improves the quality of the product.

CB450D Dual-line Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	CB450D
No. of Wires	2
Inlet Wire Dia.	9.5 mm
Outlet Wire Dia.	2*φ1.2-4.5 mm
Line Speed (Max.)	/
No. of Dies (Max.)	13*2
Drawing Wheel	φ450 mm
Fixed Speed Wheel	φ450 mm
Main Motor	/
Take-up Motor	/
Traverse Motor	/
Control Mode	AC motor
Traverse Method	/
Lubrication	Total immersion
Voltage	/
Brake	/
Take-up Spool	/

CB450D Dual-line Coarse Aluminum Wire Drawing Machine Line with Continuous Annealing Application

The CB450D dual-line coarse aluminum wire drawing machine line with continuous annealing is composed of equipment such as dual-line coarse aluminum wire drawing machine, dual-line continuous annealing machine, and take-up machine. It is mainly used for producing coarse aluminum wire of φ1.2-4.5 mm.
