Model FS/FD/FM SeriesNo. of Wires 1Inlet Wire Diameter 0.15-2.6 mmOutlet Wire Diameter 0.03-0.64 mmLine Speed (Max.) 1500-2500 m/minNo. of Dies (Max.) 14-25Motor Power 5.5-385 KWTake-up Power 2.2-22 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

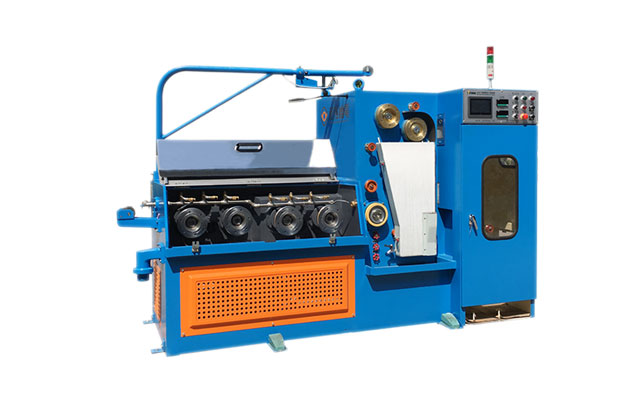

Fine Aluminum Wire Drawing Machine
Fine aluminum wire drawing machine is a precision machining equipment used to further stretch medium diameter aluminum wire into finer diameters. This device is widely used in fields such as micro wires, electronic components, and special cables, with high requirements for accuracy, speed, and surface quality.
Fine Aluminum Wire Drawing Machine Datasheet
| Item/Model |
FS Series |
FD Series |
FM Series |
| No. of Wires |
1 |
2 |
4-20 |
| Inlet Wire Dia. |
0.15-1.6 mm |
0.6-1.6 mm |
1.5-2.6 mm |
| Outlet Wire Dia. |
0.03-0.6 mm |
0.12-0.5 mm |
0.15-0.64 mm |
| Line Speed (Max.) |
2000-2500 m/min |
2000 m/min |
1500-1800 m/min |
| No. of Dies (Max.) |
14-24 |
24 |
19-25 |
| Drawing Wheel |
φ120-316 mm |
/ |
φ100-120 mm |
| Fixed Speed Wheel |
φ120-268 mm |
/ |
φ140-200 mm |
| Main Motor |
5.5-18.5 KW |
18.5-30 KW |
37-385 kW |
| Take-up Motor |
2.2-3.7 KW |
4.4-7.4 KW |
15-22 KW |
| Annealing Motor |
/ |
/ |
/ |
| Control Mode |
Double frequency converter |
/ |
/ |
| Traverse Method |
Belt drive+synchronous motor |
/ |
/ |
| Lubrication |
Spray type |
/ |
/ |
| Brake |
Electromagnetic brake |
/ |
Pneumatic / Electromagnetic brake |
| Take-up Spool |
φ200-300 mm |
φ300 mm |
φ630 mm |
Fine Aluminum Wire Drawing Machine Application
The fine aluminum wire drawing machine is widely used in fields such as fine wires, electronic components, and special cables. Specifically, as follows:
Micro Wires & Electronic WiresElectronic connection cables (such as headphone cables, aluminum foil shielding layer inside data cables).
Micro motor winding wires (such as drone motors, micro servo motors).
Enamel Aluminum Wire (electromagnetic wire)
Used for windings of small transformers, inductors, relays, and other electronic components.
Special CableHigh Temperature Wire (such as silicone rubber insulated aluminum wire).
High frequency cables (such as the shielding layer of coaxial cables).
3D Printing & Welding Materials3D printing of metal wires (some aluminum based composite materials can be used for additive manufacturing).
Precision welded aluminum wire (such as bonding aluminum wire used in electronic packaging).
