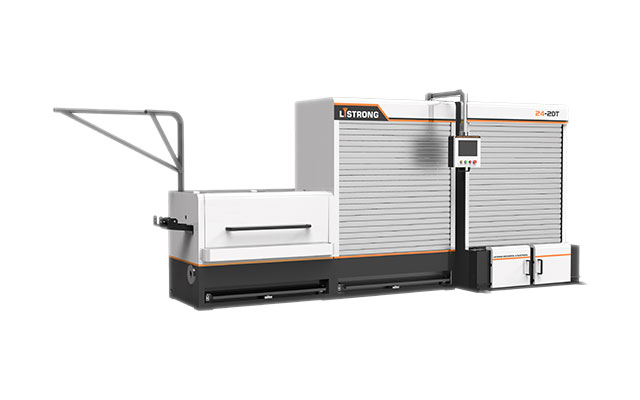

FD2A Dual-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing

FD2A Dual-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing

FD2A dual-line fine aluminum wire drawing machine line with continuous annealing is a specialized equipment line used to process medium aluminum wire (usually with a diameter of Φ0.6-1.6 mm) into fine aluminum wires (Φ0.12-0.5 mm) through multiple passes of stretching.

Characteristic

1. It can draw 2 aluminum wires at the same time, which has the advantages of high speed, energy saving, and saving space and manpower;
2. The wire winding adopts dual frequency conversion and dual motor control, ensuring stable wire drawing;
3. The tension is independently controlled and not easily broken;
4. There are two options for closing the line: closing on two separate reels or closing on one reel.

FD2A Dual-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	FD2AS	FD2AL
No. of Wires	2	2
Inlet Wire Dia.	2*φ0.6-1.2 mm	2*φ1.0-1.6 mm
Outlet Wire Dia.	2*φ0.12-0.35 mm	2*φ0.19-0.5 mm
Line Speed (Max.)	2000 m/min	2000 m/min
No. of Dies (Max.)	24	24
Main Motor	22 KW	30 KW
Take-up Motor	2*2.2 KW	2*3.7 KW
Annealing Motor	42 KVA	56 KVA
Correction System	Automatic control	Automatic control
Annealing Method	DC three-section annealing	DC three-section annealing
Brake	Pneumatic brake	Pneumatic brake
Take-up Capacity	2*25 kg	2*50 kg
Take-up Spool	φ250 mm	φ300 mm

FD2A Dual-line Fine Aluminum Wire Drawing Machine Line with Continuous Annealing Application

FD2A dual-line fine aluminum wire drawing machine line with continuous annealing can be used in fields such as fine wires, electronic components, and special cables. Specifically, as follows:
Micro Wires & Electronic Wires
Electronic connection cables (such as headphone cables, aluminum foil shielding layer inside data cables).
Micro motor winding wires (such as drone motors, micro servo motors).
Enamel Aluminum Wire (electromagnetic wire)
Used for windings of small transformers, inductors, relays, and other electronic components.
Special Cable
High Temperature Wire (such as silicone rubber insulated aluminum wire).
High frequency cables (such as the shielding layer of coaxial cables).
3D Printing & Welding Materials
3D printing of metal wires (some aluminum based composite materials can be used for additive manufacturing).
Precision welded aluminum wire (such as bonding aluminum wire used in electronic packaging).
