Model CB450SNo. of Wires 1Inlet Wire Diameter 8 mmOutlet Wire Diameter 1.2-4.0 mmLine Speed (Max.) /No. of Dies (Max.) 13Motor Power /Take-up Power /Conductor Type Copper, aluminum, and related alloys wires.Drive System AC motor

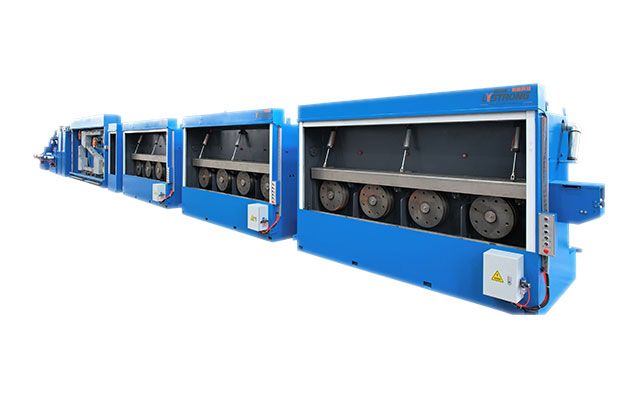

CB450S Coarse Copper Wire Drawing Machine Line with Continuous Annealing
The CB450S coarse copper wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse copper wire drawing machine, single-head continuous annealing machine, and take-up machine. It is mainly used for producing coarse copper wire of φ1.2-4.0 mm. Compared to the CB450D dual-head coarse copper wire drawing machine line, the production efficiency of the CB450S coarse copper wire drawing machine is lower, but the production cost is correspondingly reduced.
CB450S Coarse Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
CB450S |
| No. of Wires |
1 |
| Inlet Wire Dia. |
8 mm |
| Outlet Wire Dia. |
1.2-4.0 mm |
| Line Speed (Max.) |
/ |
| No. of Dies (Max.) |
13 |
| Drawing Wheel |
φ450 mm |
| Fixed Speed Wheel |
φ450 mm |
| Main Motor |
/ |
| Take-up Motor |
/ |
| Traverse Motor |
/ |
| Control Mode |
AC motor |
| Traverse Method |
/ |
| Lubrication |
Total immersion |
| Voltage |
/ |
| Brake |
/ |
| Take-up Spool |
/ |
CB450S Coarse Copper Wire Drawing Machine Line with Continuous Annealing Application
The CB450S coarse copper wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse copper wire drawing machine, single-head continuous annealing machine, and take-up machine. It is mainly used for producing coarse copper wire of φ1.2-4.0 mm.
