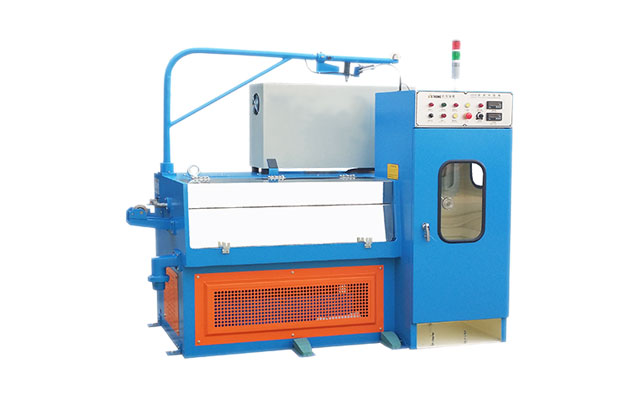

FH14 High Speed Fine Copper Wire Drawing Machine

FH14 High Speed Fine Copper Wire Drawing Machine

FH14 high speed fine copper wire drawing machine is a specialized equipment line used to process medium copper wire (usually with a diameter of Φ0.8-1.6 mm) into fine copper wires (Φ0.25-0.6 mm) through multiple passes of stretching.

FH14 High Speed Fine Copper Wire Drawing Machine Datasheet

Item/Model	FH14
No. of Wires	1
Inlet Wire Dia.	0.8-1.6 mm
Outlet Wire Dia.	0.25-0.6 mm
Line Speed (Max.)	2000 m/min
No. of Dies (Max.)	14
Slip Ratio of M/C	15%
Slip Ratio of Fixed-speed Wheel	8%
Drawing Wheel	φ316 mm
Fixed Speed Wheel	φ268 mm
Main Motor	15 KW
Take-up Motor	3.7 KW
Correction System	Automatic control
Control Method	Double frequency converter
Transmission Mode	Flat belt
Pay-off Method	Over-head
Lubrication	Spray type
Brake	Pneumatic brake
Take-up Spool	φ300 mm

FH14 High Speed Fine Copper Wire Drawing Machine Application

FH14 high speed fine copper wire drawing machine is a specialized equipment line used to process medium copper wire (usually with a diameter of Φ0.8-1.6 mm) into fine copper wires (Φ0.25-0.6 mm) through multiple passes of stretching.
