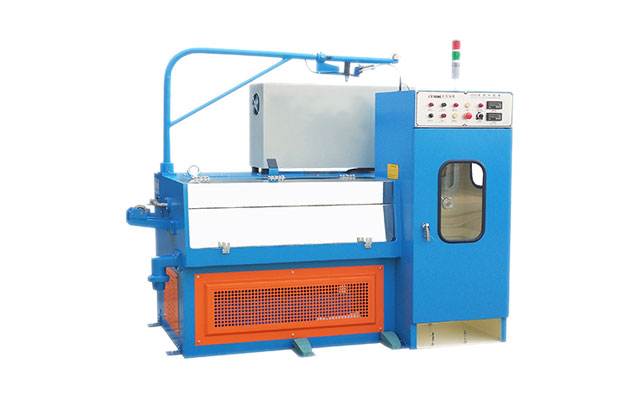

FH24 High Speed Fine Copper Wire Drawing Machine

FH24 High Speed Fine Copper Wire Drawing Machine

FH24 high speed fine copper wire drawing machine is a specialized equipment line used to process medium copper wire (usually with a diameter of Φ0.5-1.6 mm) into fine copper wires (Φ0.03-0.45 mm) through multiple passes of stretching.

FH24 High Speed Fine Copper Wire Drawing Machine Datasheet

Item/Model	FH24S	FH24M	FH24L
No. of Wires	1	1	1
Inlet Wire Dia.	0.15-0.45 mm	0.6-1.2 mm	0.6-1.6 mm
Outlet Wire Dia.	0.03-0.12 mm	0.1-0.3 mm	0.193-0.45 mm
Line Speed (Max.)	2000 m/min	2500 m/min	2500 m/min
No. of Dies (Max.)	24	24	24
Slip Ratio of M/C	9%	13%	13%
Slip Ratio of Fixed-speed Wheel	6%	8%	8%
Drawing Wheel	φ120 mm	φ242 mm	φ242 mm
Fixed Speed Wheel	φ120 mm	φ207 mm	φ207 mm
Main Motor	5.5 KW	15 KW	18.5 KW
Take-up Motor	2.2 KW	3.7 KW	3.7 KW
Correction System	Automatic control	Automatic control	Automatic control
Control Method	Double frequency converter	Double frequency converter	Double frequency converter
Transmission Mode	Flat belt	Flat belt + Timing belt	Flat belt + Timing belt
Pay-off Method	Over-head	Over-head	Over-head
Lubrication	Spray type	Spray type	Spray type
Brake	Pneumatic brake	Pneumatic brake	Pneumatic brake
Take-up Spool	φ200 mm	φ300 mm	φ300 mm

FH24 High Speed Fine Copper Wire Drawing Machine Application

FH24 high speed fine copper wire drawing machine is a specialized equipment line used to process medium copper wire (usually with a diameter of Φ0.5-1.6 mm) into fine copper wires (Φ0.03-0.45 mm) through multiple passes of stretching.
