Model FM20No. of Wires 20Inlet Wire Diameter 20*φ1.8-2.6 mmOutlet Wire Diameter 20*φ0.2-0.64 mmLine Speed (Max.) 1800No. of Dies (Max.) 19Motor Power 110+200+75 kWTake-up Power /Conductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

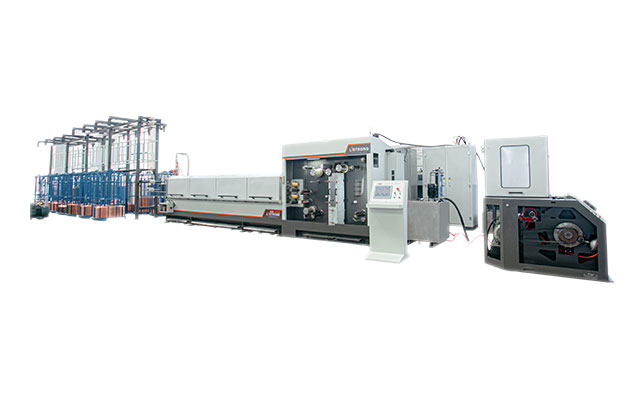

FM20 20-line Fine Copper Wire Drawing Machine Line with Continuous Annealing
FM20 20-line fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse copper wire (usually with a diameter of Φ1.8-2.6 mm) into fine copper wires (Φ0.2-0.64 mm) through multiple passes of stretching. It is widely used in industries such as wire and cable, electronic components, and enameled wire.
FM20 20-line Fine Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
FM20 |
| No. of Wires |
20 |
| Inlet Wire Dia. |
20*φ1.8-2.6 mm |
| Outlet Wire Dia. |
20*φ0.2-0.64 mm |
| Line Speed (Max.) |
1800 m/min |
| No. of Dies (Max.) |
19 |
| Slip Ratio of M/C |
20% |
| Main Motor |
110+200+75 KW |
| Drawing Wheel |
φ120/100 mm |
| Contact Wheel |
φ200 mm |
| Annealing Method |
DC |
| Annealing Voltage |
60 V |
| Annealing Current |
6000 A |
FM20 20-line Fine Copper Wire Drawing Machine Line with Continuous Annealing Application
FM20 20-line fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse copper wire (usually with a diameter of Φ1.8-2.6 mm) into fine copper wires (Φ0.2-0.64 mm) through multiple passes of stretching. It is widely used in industries such as wire and cable, electronic components, and enameled wire.
