Model FM4No. of Wires 4Inlet Wire Diameter 4*φ1.5-2.0 mmOutlet Wire Diameter 4*φ0.15-0.5 mmLine Speed (Max.) 1500-1800 m/minNo. of Dies (Max.) 20-25Motor Power 37-73.5 kWTake-up Power 14-22 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

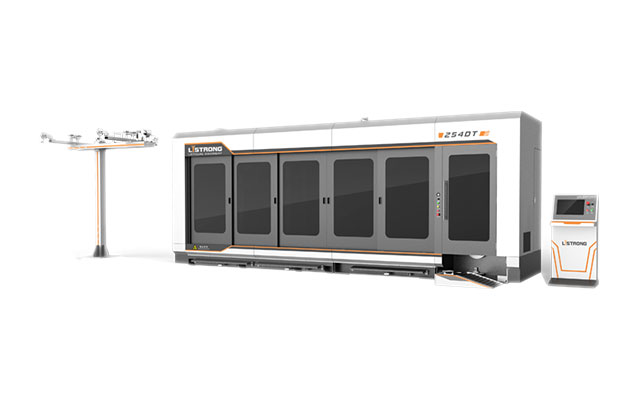

FM4 4-line Fine Copper Wire Drawing Machine Line with Continuous Annealing
FM4 4-line fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse copper wire (usually with a diameter of Φ1.5-2.0 mm) into fine copper wires (Φ0.15-0.5 mm) through multiple passes of stretching. It is widely used in industries such as wire and cable, electronic components, and enameled wire.
Characteristic
1. High precision helical gear transmission, unique oil lubrication mechanism, dual motor drive, fast mold changing system;
2. Adopting a strong fuel injection design inside the mold seat for more thorough lubrication, space saving, and convenient operation;
3. The annealed contact copper ring and nickel cylinder are made of special alloy materials to ensure longer service life;
4. The online annealing control adopts a zero meter preset voltage design to ensure stable annealing quality of the wire during start-up and shutdown states.
FM4 4-line Fine Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
FM420 |
FM425 |
| No. of Wires |
4 |
4 |
| Inlet Wire Dia. |
4*φ1.6 mm |
4*φ1.5-2.0 mm |
| Outlet Wire Dia. |
4*φ0.15-0.5 mm |
4*φ0.15-0.5 mm |
| Line Speed (Max.) |
1500 m/min |
1800 m/min |
| No. of Dies (Max.) |
20 |
25 |
| Drawing Wheel |
/ |
/ |
| Fixed Speed Wheel |
/ |
/ |
| Main Motor |
37 KW |
55KW + 18.5 KW |
| Take-up Motor |
3.7*4 KW |
22 KW |
| Annealing Motor |
/ |
/ |
| Control Mode |
Frequency converter |
Frequency converter |
| Traverse Method |
/ |
/ |
| Lubrication |
/ |
/ |
| Voltage |
/ |
/ |
| Brake |
Pneumatic brake |
Pneumatic brake |
| Take-up Spool |
φ300 mm |
φ630 mm |
FM4 4-line Fine Copper Wire Drawing Machine Line with Continuous Annealing Application
FM4 4-line fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse copper wire (usually with a diameter of Φ1.5-2.0 mm) into fine copper wires (Φ0.15-0.5 mm) through multiple passes of stretching. It is widely used in industries such as wire and cable, electronic components, and enameled wire.
