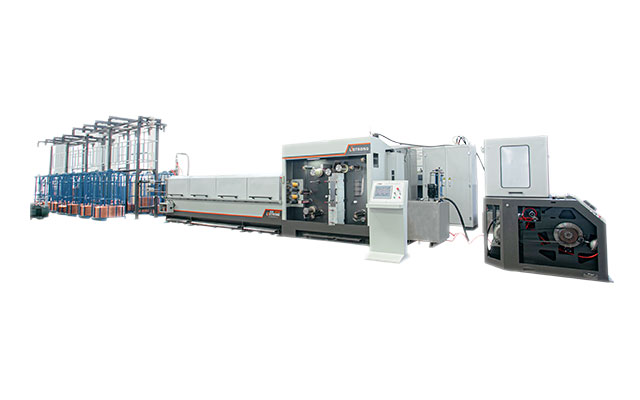

FM8 8-line Fine Copper Wire Drawing Machine Line with Continuous Annealing

FM8 8-line Fine Copper Wire Drawing Machine Line with Continuous Annealing

FM8 8-line fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse copper wire (usually with a diameter of Φ1.5-1.8 mm) into fine copper wires (Φ0.15-0.40 mm) through multiple passes of stretching. It is widely used in industries such as wire and cable, electronic components, and enameled wire.

Characteristic

1. High precision helical gear transmission, unique oil lubrication mechanism, dual motor drive, fast mold changing system;
2. Adopting a strong fuel injection design inside the mold seat for more thorough lubrication, space saving, and convenient operation;
3. The annealed contact copper ring and nickel cylinder are made of special alloy materials to ensure longer service life;
4. The online annealing control adopts a zero meter preset voltage design to ensure stable annealing quality of the wire during start-up and shutdown states.

FM8 8-line Fine Copper Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	FM8
No. of Wires	8
Inlet Wire Dia.	8*φ1.5-1.8 mm
Outlet Wire Dia.	8*φ0.15-0.40 mm
Line Speed (Max.)	1800 m/min
No. of Dies (Max.)	25
Slip Ratio of M/C	20%+15.5%
Main Motor	110+37 KW
Drawing Wheel	φ100 mm
Contact Wheel	φ140 mm
Annealing Method	DC
Annealing Voltage	60 V
Annealing Current	2000 A

FM8 8-line Fine Copper Wire Drawing Machine Line with Continuous Annealing Application

FM8 8-line fine copper wire drawing machine line with continuous annealing is a specialized equipment line used to process coarse copper wire (usually with a diameter of Φ1.5-1.8 mm) into fine copper wires (Φ0.15-0.40 mm) through multiple passes of stretching. It is widely used in industries such as wire and cable, electronic components, and enameled wire.
