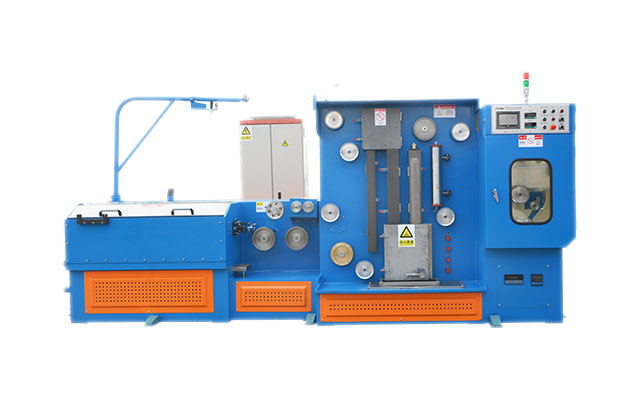

FS24 fine brass wire drawing machine line with continuous annealing is a key equipment specifically designed to process medium brass wire with a diameter of 0.6 mm to 1.2 mm into fine brass wire with a diameter of 0.1 mm to 0.3 mm through multiple passes of stretching.

Main Structure

Pay-off system: Active/passive pay-off, equipped with tension control.
Wire drawing host: Mold box, wire drawing wheel (tower wheel or inline type), lubrication and cooling system.
Annealing device: Eliminates work hardening and improves wire flexibility.
Take-up system: I-shaped wheel or double disc winding, precise wire arrangement ensures neat winding.
Control system: PLC+human-machine interface (HMI), realizing the adjustment of parameters such as speed, tension, temperature, etc.

FS24 Fine Brass Wire Drawing Machine Line with Continuous Annealing Datasheet

Item/Model	FS24
No. of Wires	1
Inlet Wire Dia.	0.6-1.2 mm
Outlet Wire Dia.	0.1-0.3 mm
Line Speed (Max.)	1500 m/min
No. of Dies (Max.)	24
Slip Ratio of M/C	/
Slip Ratio of Fixed Speed Wheel	/
Main Motor	15 kW
Take-up Motor	3.7 KW
Annealing Motor	15 KVA
Annealing Method	DC four-section annealing
Traverse Method	/
Brake	Pneumatic brake
Take-up Spool	φ250 mm

FS24 Fine Brass Wire Drawing Machine Line with Continuous Annealing Application

FS24 fine brass wire drawing machine line with continuous annealing plays an irreplaceable role in modern industry. Its main application areas and technical characteristics are as follows:
Manufacturing of Electronic Components
Micro connectors: used for precision connectors such as Type-C interfaces for mobile phones/computers, SIM card slots, semiconductor leads, bonding wires for chip packaging, relay contacts, and key conductive components for electromagnetic relays.
Precision Instrument Field
Medical equipment: orthodontic archwire, endoscope guide wire.
Optical instruments: barrel focusing thread, precision gear shaft, special surface coating treatment.
High End Consumer Goods
Jewelry craftsmanship: 18K gold alloy jewelry skeleton, precision woven jewelry thread, surface polishing requires mirror effect.
Instrument manufacturing: piano stringer components, brass instrument pistons.
Industrial Special Applications
Micro spring: a buffer component for electronic devices.
3D printing materials: substrates for sintering metal powders.
