Model ML11SNo. of Wires 1Inlet Wire Diameter 3.0 mm (Max.)Outlet Wire Diameter 1.13-2.78 mmLine Speed (Max.) 720 m/minNo. of Dies (Max.) 11Motor Power 30 KWTake-up Power 7.5 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Dual frequency converter

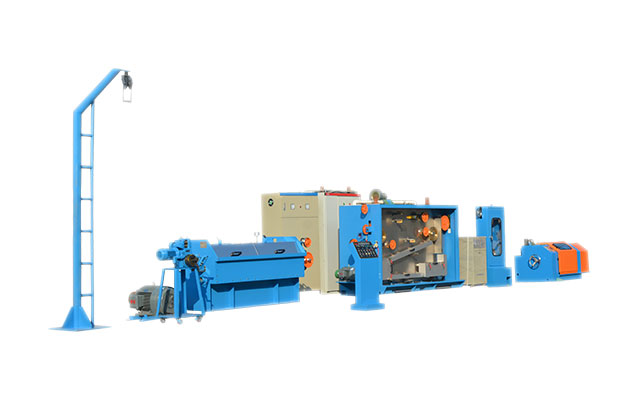

ML11S Medium Copper Wire Drawing Machine Line with Continuous Annealing
The ML11S medium copper wire drawing machine line with continuous annealing is composed of equipment such as single-head medium copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium copper wire of φ1.13-2.78 mm.
ML11S Medium Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
ML11S |
| No. of Wires |
1 |
| Inlet Wire Dia. |
3.0 mm (Max.) |
| Outlet Wire Dia. |
1.13-2.78 mm |
| Line Speed (Max.) |
720 m/min |
| No. of Dies (Max.) |
11 |
| Drawing Wheel |
φ280 mm |
| Fixed Speed Wheel |
φ280 mm |
| Main Motor |
30 KW |
| Take-up Motor |
7.5 KW |
| Annealing Motor |
5.5 KW |
| Control Mode |
Frequency converter |
| Traverse Method |
Gear motor |
| Lubrication |
Total immersion |
| Voltage |
/ |
| Brake |
Pneumatic brake |
| Take-up Spool |
φ630 mm |
ML11S Medium Copper Wire Drawing Machine Line with Continuous Annealing Application
The ML11S medium copper wire drawing machine line with continuous annealing is composed of equipment such as single-head medium copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium copper wire of φ1.13-2.78 mm.
