Model ML9SNo. of Wires 1Inlet Wire Diameter 3.5 mm (Max.)Outlet Wire Diameter 0.8-2.8 mmLine Speed (Max.) 1200 m/minNo. of Dies (Max.) 9Motor Power 45 KWTake-up Power 15 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Dual frequency converter

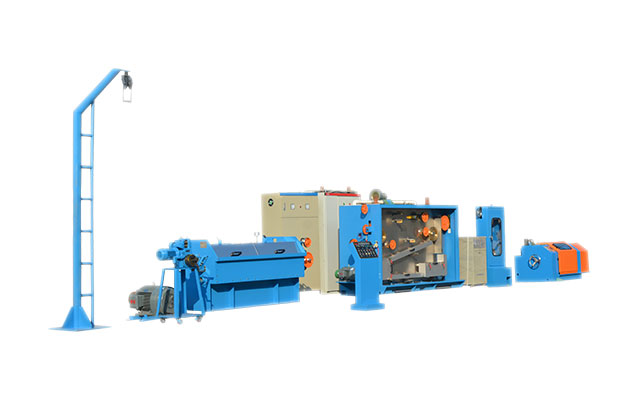

ML9S Medium Copper Wire Drawing Machine Line with Continuous Annealing
The ML9S medium copper wire drawing machine line with continuous annealing is composed of equipment such as single-head medium copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium copper wire of φ0.8-2.8 mm.
ML9S Medium Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
ML9S |
| No. of Wires |
1 |
| Inlet Wire Dia. |
3.5 mm (Max.) |
| Outlet Wire Dia. |
0.8-2.8 mm |
| Line Speed (Max.) |
1200 m/min |
| No. of Dies (Max.) |
9 |
| Drawing Wheel |
φ250 mm |
| Fixed Speed Wheel |
φ250 mm |
| Main Motor |
45 KW |
| Take-up Motor |
15 KW |
| Annealing Motor |
7.5 KW |
| Control Mode |
Frequency converter |
| Traverse Method |
Gear motor |
| Lubrication |
Total immersion |
| Voltage |
/ |
| Brake |
Pneumatic brake |
| Take-up Spool |
φ630 mm |
ML9S Medium Copper Wire Drawing Machine Line with Continuous Annealing Application
The ML9S medium copper wire drawing machine line with continuous annealing is composed of equipment such as single-head medium copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium copper wire of φ0.8-2.8 mm.
