Model MS17SNo. of Wires 1Inlet Wire Diameter 2.5-3.5 mmOutlet Wire Diameter 0.4-1.6 mmLine Speed (Max.) 1800 m/minNo. of Dies (Max.) 17Motor Power 55 kWTake-up Power 15 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter
MS17S Medium Copper Wire Drawing Machine Line with Continuous Annealing

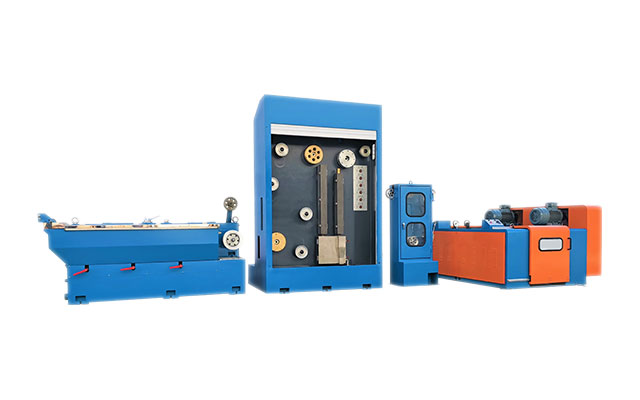

The MS17S medium copper wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium copper wire of φ0.4-1.6 mm.
MS17S Medium Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
MS17S |
| No. of Wires |
1 |
| Inlet Wire Dia. |
2.5-3.5 mm |
| Outlet Wire Dia. |
0.4-1.6 mm |
| Line Speed (Max.) |
1800 m/min |
| No. of Dies (Max.) |
17 |
| Drawing Wheel |
/ |
| Fixed Speed Wheel |
/ |
| Main Motor |
55 kW |
| Take-up Motor |
15 KW |
| Traverse Motor |
/ |
| Control Mode |
Frequency converter |
| Traverse Method |
Gear motor |
| Lubrication |
Spray type |
| Voltage |
/ |
| Brake |
Pneumatic brake |
| Take-up Spool |
φ630 mm |
MS17S Medium Copper Wire Drawing Machine Line with Continuous Annealing Application
The MS17S medium copper wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing medium copper wire of φ0.4-1.6 mm.
