Model CE400SNo. of Wires 1Inlet Wire Diameter 8 mmOutlet Wire Diameter 1.38-2.78 mmLine Speed (Max.) 600 m/minNo. of Dies (Max.) 13Motor Power 90 KWTake-up Power 11 KWConductor Type Copper, aluminum, and related alloys wires.Drive System Frequency converter

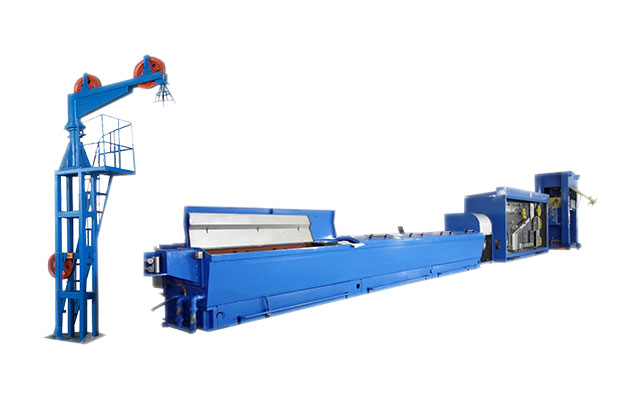

CE400S Economic Coarse Copper Wire Drawing Machine Line with Continuous Annealing
The CE400S economic coarse copper wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing coarse copper wire of φ1.38-2.78 mm. Compared to other coarse copper wire drawing machines, the CE400S economic coarse copper wire drawing machine line has a lower wire speed and lower main power, but it has a good cost performance ratio. It is suitable for clients with limited budgets.
CE400S Economic Coarse Copper Wire Drawing Machine Line with Continuous Annealing Datasheet
| Item/Model |
CE400S |
| No. of Wires |
1 |
| Inlet Wire Dia. |
8 mm |
| Outlet Wire Dia. |
1.38-2.78 mm |
| Line Speed (Max.) |
600 m/min |
| No. of Dies (Max.) |
13 |
| Drawing Wheel |
φ450 mm |
| Fixed Speed Wheel |
φ450 mm |
| Main Motor |
90 KW |
| Take-up Motor |
11 KW |
| Traverse Motor |
/ |
| Control Mode |
Frequency converter |
| Traverse Method |
Gear motor |
| Lubrication |
Spray type |
| Voltage |
/ |
| Brake |
Pneumatic brake |
| Take-up Spool |
φ400/500 mm |
CE400S Economic Coarse Copper Wire Drawing Machine Line with Continuous Annealing Application
The CE400S economic coarse copper wire drawing machine line with continuous annealing is composed of equipment such as single-head coarse copper wire drawing machine, continuous annealing machine, and take-up machine. It is mainly used for producing coarse copper wire of φ1.38-2.78 mm.
