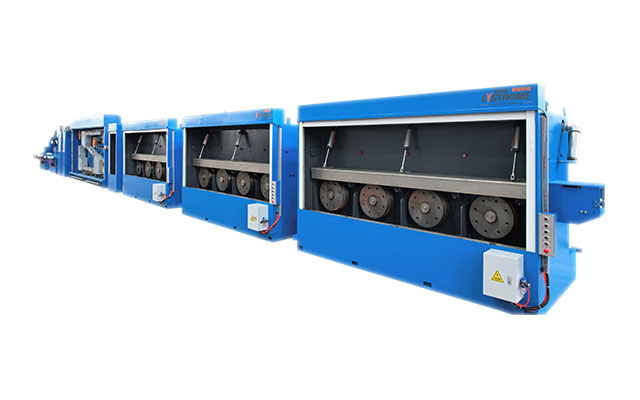

Coarse Copper Wire Drawing Machine

Coarse Copper Wire Drawing Machine

Coarse copper wire drawing machine is a mechanical equipment specifically used to process coarse copper wire (such as copper rod with a diameter of 8.00 mm) into finer copper wire (such as 1.20-4.50 mm) through multi pass stretching process. Its core function is to gradually reduce the diameter of copper wire through molds, while optimizing the surface smoothness, roundness, and internal structure of the wire to meet the high-precision requirements of copper wire in fields such as wire and cable, electronic components, etc.

Main Components

Pay-off Unit
Place the original copper wire coil to ensure continuous feeding;
Wire Drawing Mold
Composed of multiple molds with different aperture sizes, the copper wire is stretched step by step;
Traction Device
Control the constant tension of copper wire during the stretching process to prevent wire breakage;
Lubrication System
Reduce friction and heat by immersion or spray lubrication, and extend mold life;
Take-up Device
Wrap the stretched thin copper wire neatly for subsequent processing.

Coarse Copper Wire Drawing Machine Datasheet

Item/Model	CB Series	CS Series	CC Series	CE Series
No. of Wires	1/2	1	1	1
Inlet Wire Dia.	8 mm	8 mm	8 mm	8 mm
Outlet Wire Dia.	1.2-4.5 mm	1.2-4.5 mm	1.6-3.5 mm	1.38-2.78 mm
Line Speed (Max.)	/	1500 m/min	800 m/min	600 m/min
No. of Dies (Max.)	13-26	13	9-13	13
Drawing Wheel	φ450 mm	φ450 mm	φ450 mm	φ450 mm
Fixed Speed Wheel	φ450 mm	φ450 mm	φ450 mm	/
Main Motor	/	/	160-200 KW	90 kW
Take-up Motor	/	/	15 KW	11 KW
Traverse Motor	/	/	/	/
Control Mode	AC motor	AC motor	Frequency converter	/
Traverse Method	/	/	Gear motor	Gear motor
Lubrication	Total immersion	Total immersion	Spray type	Spray type
Voltage	/	/	380V	/
Brake	/	/	Pneumatic brake	/
Take-up Spool	/	φ500-630 mm	φ800 mm	φ500 mm

Coarse Copper Wire Drawing Machine Application

The coarse copper wire drawing machine reduces the diameter of copper wire step by step through a mold, while optimizing the surface smoothness, roundness, and internal structure of the wire to meet the high-precision requirements of copper wire in fields such as wire and cable, electronic components, etc. It is mainly used in the following situations:
Wire and Cable Industry
Conductor core wires used for producing power transmission lines and communication cables;
Electronic Components
Manufacturing precision copper wires such as circuit board wires and transformer windings;
Metal Processing
Pre treatment of spring steel wire, rope making wire, etc;
New Energy
Copper material processing for photovoltaic welding strips and electric vehicle wiring harnesses.
