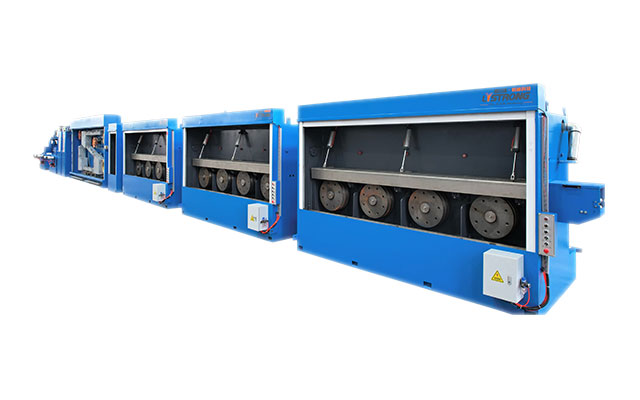

Copper wire drawing machine is a specialized equipment that uses multiple cold deformation processes to gradually stretch copper rods (Φ 8-20 mm) to the target wire diameter (minimum up to Φ 0.01 mm).

Copper Wire Drawing Machine Datasheet

Item/Model	C Series	M Series	M Series	F Series	U Series
No. of Wires	1/2	1	1/2	8-20	1
Inlet Wire Dia.	8 mm	3-3.5 mm	2.5-3.5 mm	1.5-2.6 mm	0.15-1.6 mm
Outlet Wire Dia.	1.2-4.5 mm	0.5-2.8 mm	0.4-2.0 mm	0.15-0.64 mm	0.03-0.6 mm
Line Speed (Max.)	800 m/min	720-1200 m/min	1800 m/min	1800m/min	2000-2500 m/min
No. of Dies (Max.)	9-13	9-17	17	19-25	14-24
Drawing Wheel	φ450 mm	φ250-280 mm	/	φ100/120 mm	φ120-316 mm
Fixed Speed Wheel	φ450 mm	/	/	φ140/200 mm	φ120-268 mm
Main Motor	160-200 KW	30-45 KW	55-110 KW	147-385 kW	5.5-18.5 KW
Take-up Motor	15 KW	7.5-15 KW	15-30 KW	/	2.2-3.7 KW
Traverse Motor	0.4 KW	/	/	/	/
Control Mode	Speed controller+frequency converter	Double frequency converter	/	/	Frequency converter
Traverse Method	Gear motor	Gear motor	Gear motor	/	Belt drive+synchronous motor
Lubrication	Spray type	Spray type	Spray type	/	Spray type
Voltage	380V	/	/	/	/
Brake	Pneumatic brake	Pneumatic brake	Pneumatic brake	/	Electromagnetic brake
Take-up Spool	φ800 mm	φ630 mm	φ630 mm	/	φ300 mm

Copper Wire Drawing Machine Application

Copper wire drawing machine is mainly used in the following scenarios:
Power Transmission
Overhead conductor (Φ 1.5-4 mm);
Cable conductor (Φ 0.2-2.5 mm).
Electronic Appliances
Enamel wire (Φ 0.03-0.5 mm);
Relay contact (Φ 0.1-0.3 mm).
Communications Technology
Coaxial cable inner conductor (Φ 0.6-1.2 mm);
Ultra fine copper wire (Φ 0.02-0.08 mm) for 5G.
Special Purpose
Superconducting cable substrate (oxygen free copper);
3D printing wire (Φ 0.1-0.3 mm).
