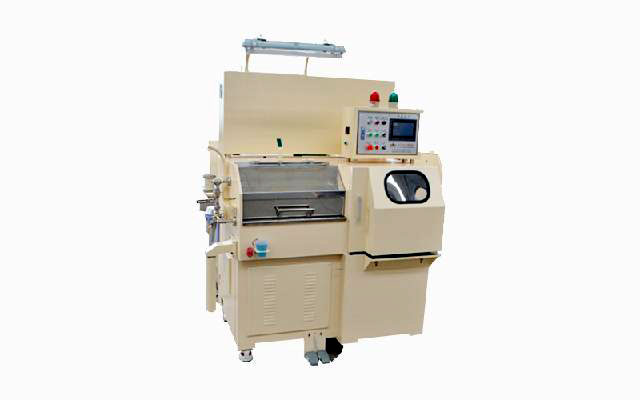

120F Dual Frequency Conversion Fine Silver Wire Drawing Machine

120F Dual Frequency Conversion Fine Silver Wire Drawing Machine

120F dual frequency conversion fine silver wire drawing machine is a precision processing equipment specifically designed to pull silver wires from their initial diameter (usually 0.2-0.5 mm) to the range of 0.03-0.17 mm. It belongs to the fine specification precious metal wire drawing machine.

120F Dual Frequency Conversion Fine Silver Wire Drawing Machine Datasheet

Item/Model	120F
Inlet Wire Dia.	0.076-0.35 mm
Outlet Wire Dia.	0.04-0.179 mm
Line Speed (Max.)	650 m/min
No. of Dies (Max.)	13
Reduction Rate	8%, final: 7%
Drawing Method	Tower wheels: 2 sets, Fixed speed wheels: 2 sets, spray sliding type.
Tower Wheel	Tower wheels: φ120x11 sections, 2 sets; Fixed speed wheels: φ120, 2 sets; Spray ceramic tower wheel.
Main Motor	4 KW
Take-up Motor	1.1 KW
Traverse Motor	0.4 KW
Pump Motor	90 W
Lighting	220V, 40W
Brake	24V, 22W
Speed Control	Potentiometer
Traverse Method	Ball screw transmission
Lubrication	Fan shaped spray type (with water tank, water pump and pay off rack)
Overall Size	1910x1010x1730 mm
Total Weight	1.0 T

120F Dual Frequency Conversion Fine Silver Wire Drawing Machine Application

120F dual frequency conversion fine silver wire drawing machine is the core equipment for precision silver wire manufacturing, and its high precision and stability make it irreplaceable in high-end manufacturing industry. It is mainly applied in the following scenarios.
Jewelry Processing
Silver necklaces, bracelets, earrings, and other fine thread weaving and inlay.
Electronic Industry
Precision electronic connecting wire, silver wire for conductive silver paste.
Medical Equipment
Dental silver alloy wire, minimally invasive surgical guide wire.
Precise Instrument
Sensor wire and micro coil winding.
Arts and Crafts
Silver silk painting and cloisonn é wire cutting technique.
