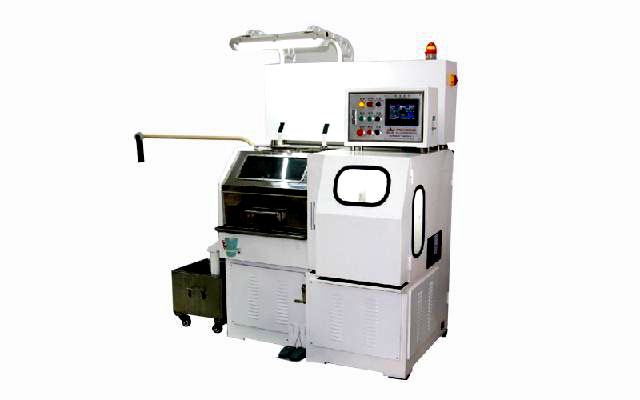

100F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine

100F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine

100F dual frequency conversion ultra-fine silver wire drawing machine is a precision equipment specifically designed for producing high-precision silver wires with a diameter of 20-40 microns (0.02-0.04 mm), widely used in precision electronics, high-end jewelry, medical and scientific research fields.

100F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine Datasheet

Item/Model	100F
Inlet Wire Dia.	0.055-0.120 mm
Outlet Wire Dia.	0.022-0.040 mm
Line Speed (Max.)	1800 m/min
No. of Dies (Max.)	24
Reduction Rate	8%, final: 7%
Drawing Method	Tower wheels: 2 sets, Fixed speed wheels: 2 sets, spray sliding type.
Tower Wheel	Tower wheels: φ100x14 sections, 2 sets; Fixed speed wheels: φ100, 2 sets; Spray ceramic tower wheel.
Main Motor	3 KW
Take-up Motor	1.1 KW
Traverse Motor	0.4 KW
Pump Motor	120 W
Lighting	220V, 40W
Brake	24V, 30W
Speed Control	Potentiometer
Traverse Method	Ball screw transmission
Lubrication	Downward spray tower transportation, automatic spraying (with water tank, water pump and pay off rack).
Overall Size	1825x1055x1660 mm
Total Weight	1.1 T

100F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine Application

100F dual frequency conversion ultra-fine silver wire drawing machine is mainly used in the following scenarios:
1. Precision electronic components (such as integrated circuit bonding wires, sensor wires)
2. High end jewelry (such as ultra-fine silver chains and micro inlaid silk)
3. Medical field (such as silver alloy wire for dental restoration).
