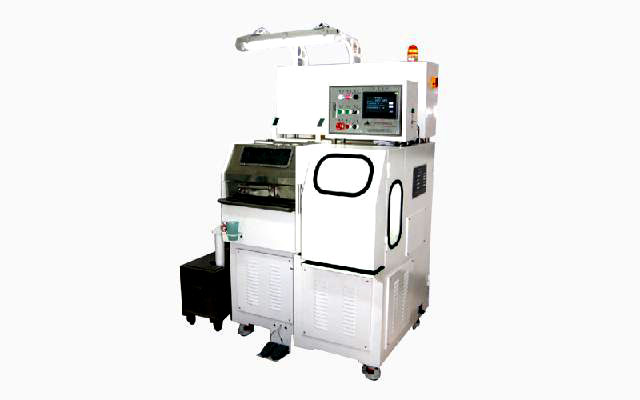

85F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine

85F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine

85F dual frequency conversion ultra-fine silver wire drawing machine is a precision equipment specifically designed for producing high-precision silver wires with a diameter of 10-30 microns (0.01-0.03 mm), widely used in precision electronics, high-end jewelry, medical and scientific research fields.

85F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine Datasheet

Item/Model	85F
Inlet Wire Dia.	0.027-0.057 mm
Outlet Wire Dia.	0.017-0.035 mm
Line Speed (Max.)	1500 m/min
No. of Dies (Max.)	16
Reduction Rate	6%, final: 5%
Drawing Method	Tower wheels: 2 sets, Fixed speed wheels: 2 sets, spray sliding type.
Tower Wheel	Tower wheels: φ85x14 sections, 2 sets; Fixed speed wheels: φ85, 2 sets; Spray ceramic tower wheel.
Main Motor	2.2 KW
Take-up Motor	0.55 KW
Traverse Motor	0.4 KW
Pump Motor	90 W
Lighting	220V, 40W
Brake	24V, 22W
Speed Control	Potentiometer
Traverse Method	Ball screw drive, spool movement
Lubrication	Downward spray tower transportation, automatic spraying (with water tank, water pump and pay off rack).
Overall Size	1520x1090x1580 mm
Total Weight	1.0 T

85F Dual Frequency Conversion Ultrafine Silver Wire Drawing Machine Application

85F dual frequency conversion ultra-fine silver wire drawing machine is mainly used in the following scenarios:
1. Precision electronic components (such as integrated circuit bonding wires, sensor wires)
2. High end jewelry (such as ultra-fine silver chains and micro inlaid silk)
3. Medical field (such as silver alloy wire for dental restoration).
